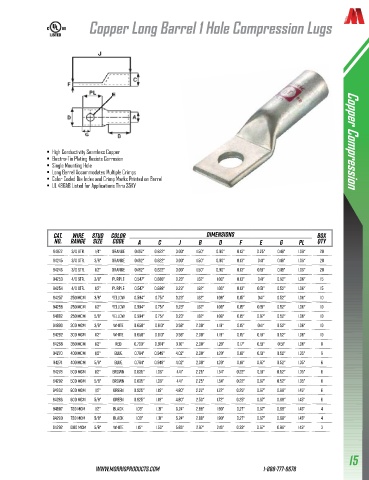

Copper Long Barrel 1 Hole Compression Lugs

• High Conductivity Seamless Copper Copper Compression
• Electro-Tin Plating Resists Corrosion
• Single Mounting Hole
• Long Barrel Accommodates Multiple Crimps
• Color Coded Die Index and Crimp Marks Printed on Barrel
• UL 486AB Listed for Applications Thru 35KV

Cat. Wire Stud Color Dimensions Box
No. Range Size Code a c j b d f e g pl Qty
94872 3/0 STR. 1/4" ORANGE 0.492" 0.622" 3.03" 1.50" 0.90" 0.13" 0.25" 0.48" 1.06" 20
94245 3/0 Str. 3/8" Orange 0.492" 0.622" 3.03" 1.50" 0.90" 0.13" 0.41" 0.48" 1.06" 20
94246 3/0 Str. 1/2" Orange 0.492" 0.622" 3.03" 1.50" 0.90" 0.13" 0.51" 0.48" 1.06" 20
94253 4/0 Str. 3/8" Purple 0.547" 0.688" 3.23" 1.62" 1.00" 0.13" 0.41" 0.52" 1.06" 15
94254 4/0 Str. 1/2" Purple 0.547" 0.688" 3.23" 1.62" 1.00" 0.13" 0.51" 0.52" 1.06" 15
94257 250 MCM 3/8" Yellow 0.594" 0.751" 3.23" 1.62" 1.09" 0.15" 0.41" 0.52" 1.06" 10
94258 250 MCM 1/2" Yellow 0.594" 0.751" 3.23" 1.62" 1.09" 0.15" 0.51" 0.52" 1.06" 10
94882 250 MCM 5/8" YELLOW 0.594" 0.751" 3.23" 1.62" 1.09" 0.15" 0.67" 0.52" 1.06" 10
94890 300 mcm 3/8" white 0.658" 0.813" 3.58" 2.00" 1.19" 0.15" 0.41" 0.52" 1.06" 10
94262 300 MCM 1/2" White 0.658" 0.813" 3.58" 2.00" 1.19" 0.15" 0.51" 0.52" 1.06" 10
94266 350 MCM 1/2" Red 0.700" 0.874" 3.70" 2.00" 1.28" 0.17" 0.51" 0.51" 1.06" 8
94270 400 MCM 1/2" Blue 0.764" 0.949" 4.02" 2.00" 1.39" 0.18" 0.51" 0.52" 1.35" 6
94274 400 MCM 5/8" Blue 0.764" 0.949" 4.02" 2.00" 1.39" 0.18" 0.67" 0.52" 1.35" 6
94278 500 MCM 1/2" Brown 0.835" 1.06" 4.41" 2.25" 1.54" 0.22" 0.51" 0.52" 1.35" 8
94282 500 MCM 5/8" Brown 0.835" 1.06" 4.41" 2.25" 1.54" 0.22" 0.67" 0.52" 1.35" 8
94902 600 MCM 1/2" GREEN 0.925" 1.19" 4.80" 2.22" 1.72" 0.25" 0.67" 0.69" 1.45" 6
94286 600 MCM 5/8" Green 0.925" 1.19" 4.80" 2.50" 1.72" 0.25" 0.67" 0.69" 1.45" 6
94907 750 MCM 1/2" BLACK 1.03" 1.31" 5.24" 2.88" 1.90" 0.27" 0.67" 0.69" 1.45" 4
94290 750 MCM 5/8" Black 1.03" 1.31" 5.24" 2.88" 1.90" 0.27" 0.67" 0.69" 1.45" 4
94292 1000 MCM 5/8" White 1.15" 1.50" 5.65" 2.87" 2.15" 0.33" 0.67" 0.86" 1.45" 3

15
