P. 11
0.758 19.3
2.250 9.961 253
57.2
2.480
63

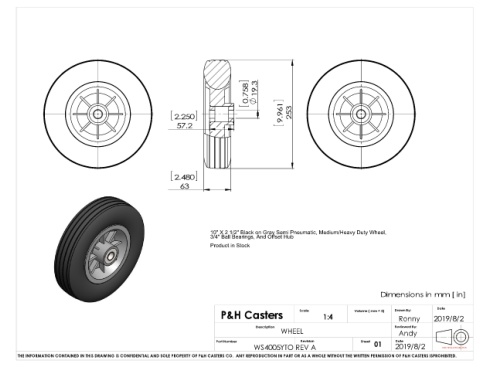

10" X 2 1/2" Black on Gray Semi Pneumatic, Medium/Heavy Duty Wheel,
3/4" Ball Bearings, And Offset Hub
Product in Stock
Dimensions in mm [ in]
Date
P&H Casters Scale 1:4 Volume ( mm ^ 3) Drawn By: 2019/8/2
Ronny
Description Reviewed By:
WHEEL Andy
Part Number Revision Sheet 01 Date
WS4005YTO REV A 2019/8/2
THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND SOLE PROPERTY OF P&H CASTERS CO. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF P&H CASTERS ISPROHIBITED.
