P. 12
0.504 12.8
7.992 203
2.165
55
2.500
63.5

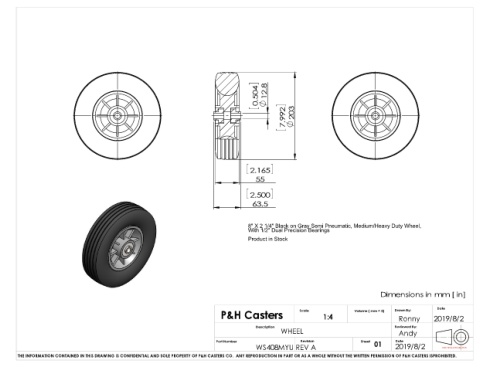

8" X 2 1/4" Black on Gray Semi Pneumatic, Medium/Heavy Duty Wheel,
With 1/2" Dual Precision Bearings
Product in Stock
Dimensions in mm [ in]
Date
P&H Casters Scale 1:4 Volume ( mm ^ 3) Drawn By: 2019/8/2
Ronny
Description Reviewed By:
WHEEL Andy
Part Number Revision Sheet 01 Date
WS408MYU REV A 2019/8/2
THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND SOLE PROPERTY OF P&H CASTERS CO. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF P&H CASTERS ISPROHIBITED.
