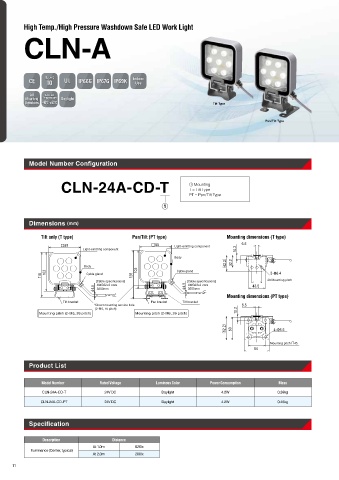

High Temp./High Pressure Washdown Safe LED Work Light

         CLN-A







                 3P)4                           Indoor

                                                 Use
            All  Ambient
          Mounting  Temperature  Daylight
          Directions    ˆ~+  ˆ                                              Tilt Type


                                                                                               Pan/Tilt Type







           Model Number Configuration



                      CLN-24A-CD-T                                 ① Mounting
                                                                   T = Tilt Type
                                                                   PT = Pan/Tilt Type

                                                          ①


           Dimensions (mm)
               Tilt only (T type)              Pan/Tilt (PT type)                Mounting dimensions (T type)
                      □85                             □85     Light-emitting component  6.5
                              Light-emitting component                              10.2
                                                              Body
                               Body                                             ʢ42.2ʣ  32.2
                 102           Cable gland       102           Cable gland                      3-Φ6.4
               118                             128
                                   [Cable specifications]                                      26 Mounting pitch
                                  φ4.9  AWG22x2 core              φ4.9 [Cable specifications]   43.5
                                                                    AWG22x2 core
                                    3000mm
                                                                    3000mm
                                                                                 Mounting dimensions (PT type)
                       Tilt bracket                   Pan bracket  Tilt bracket
                                  *Direct mounting service hole                       6.5
                                   (2-M5, 16 pitch)                                 10.2
               Mounting pitch (2-M6, 26 pitch)   Mounting pitch (2-M6, 26 pitch)
                                                                                ʢ62.2ʣ  60       4-Φ6.5


                                                                                                Mounting pitch □45
                                                                                          64


           Product List

                Model Number        Rated Voltage       Luminous Color     Power Consumption       Mass

                CLN-24A-CD-T          24V DC              Daylight             4.2W               0.39kg
               CLN-24A-CD-PT          24V DC              Daylight             4.2W               0.46kg


           Specification


                Description             Distance
                                  At 1.0m       820lx
            Illuminance (Center, typical)
                                  At 2.0m       200lx
