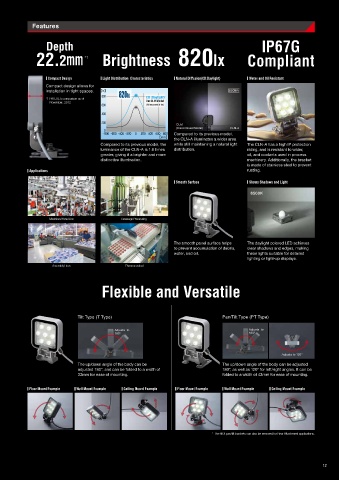

Features


                 Depth                                                                       IP67G
              22.2mm           *1    Brightness 820lx                                   Compliant




                    ■ Compact Design    ■ Light Distribution  Characteristics    ■ Natural Diffusion(CD:Daylight)    ■ Water and Oil Resistant
                 Compact design allows for
                 installation in tight spaces.  ʲlxʳ                             550lm
                 *1 PATLITE's comparison as of   800  820lx  CD (Daylight)
                  November, 2012                    Our CLM Model
                                     600             (All measured at 1m)
                                     400
                                     200
                                                                CLM
                                                                (Discontinued Model)  CLN-A
                                      0
                                     -800  -600  -400  -200  0  200 400 600 800  Compared to its previous model,
                                                        ʲmmʳ
                                                              the CLN-A illuminates a wider area
                                    Compared to its previous model, the   while still maintaining a natural light   The CLN-A has a high IP protection
                                    luminance of the CLN-A is 1.6 times   distribution.  rating, and is resistant to water,
                                    greater, giving it a brighter and more              oil, and coolants used in process
                                    distinctive illumination.                           machinery. Additionally, the bracket
                                                                                        is made of stainless steel to prevent
             ■ Applications                                                             rusting.
                                                                ■ Smooth Surface          ■ Shows Shadows and Light
                                                                                         6500K




                  Machines/Panel Box        Beverage Processing



                                                              The smooth panel surface helps   The daylight colored LED achieves
                                                              to prevent accumulation of debris,   clear shadows and edges, making
                                                              water, and oil.           these lights suitable for detailed
                                                                                        lighting or light-up displays.
                   Assembly Lines            Pharmaceutical


                                     Flexible and Versatile





                            Tilt Type (T Type)                                 Pan/Tilt Type (PT Type)

                                         Adjusts  to                                    Adjusts  to
                                         180°                                           180°



                                                                                                     Adjusts to 120°
                            The up/down angle of the body can be               The up/down angle of the body can be adjusted
                            adjusted 180°, and can be folded to a width of     180°, as well as 120° for left/right angles. It can be
                            33mm for ease of mounting.                         folded to a width of 43mm for ease of mounting.

             ■ Floor Mount Example    ■ Wall Mount Example    ■ Ceiling Mount Example    ■ Floor Mount Example    ■ Wall Mount Example    ■ Ceiling Mount Example







                                                                            *  The tilt & pan/tilt brackets can also be removed for Rear Attachment applications.
