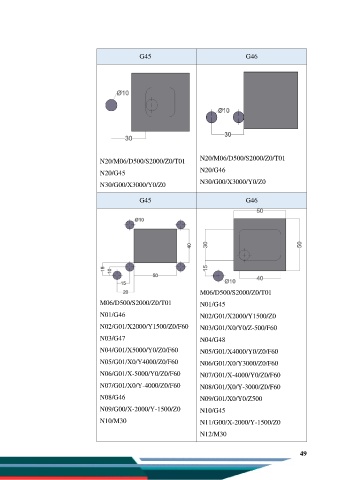

G45 G46
N20/M06/D500/S2000/Z0/T01 N20/M06/D500/S2000/Z0/T01
N20/G46
N20/G45
N30/G00/X3000/Y0/Z0 N30/G00/X3000/Y0/Z0
G45 G46
M06/D500/S2000/Z0/T01
M06/D500/S2000/Z0/T01 N01/G45
N01/G46 N02/G01/X2000/Y1500/Z0
N02/G01/X2000/Y1500/Z0/F60 N03/G01/X0/Y0/Z-500/F60
N03/G47 N04/G48
N04/G01/X5000/Y0/Z0/F60 N05/G01/X4000/Y0/Z0/F60
N05/G01/X0/Y4000/Z0/F60 N06/G01/X0/Y3000/Z0/F60
N06/G01/X-5000/Y0/Z0/F60 N07/G01/X-4000/Y0/Z0/F60
N07/G01/X0/Y-4000/Z0/F60 N08/G01/X0/Y-3000/Z0/F60
N08/G46 N09/G01/X0/Y0/Z500
N09/G00/X-2000/Y-1500/Z0 N10/G45
N10/M30 N11/G00/X-2000/Y-1500/Z0
N12/M30
