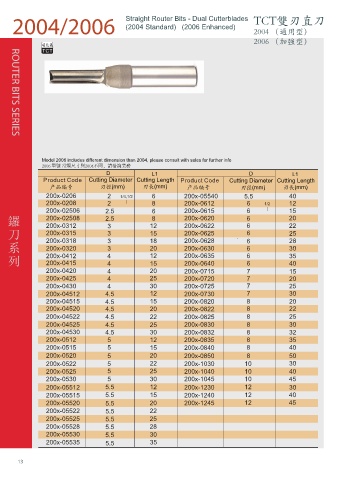

Page 15 - 2020和霖目錄全

2004/2006 Straight Router Bits - Dual Cutterblades TCT雙刃直刀
(2004 Standard) (2006 Enhanced)
2004 （通用型）
2006 （加強型）

ROUTER BITS SERIES

Model 2006 includes different dimension than 2004, please consult with sales for further info
྘ὂ ӈἲԄժ∻ ҂๝đ⃪ట⇧∊↩
D L1 D L1
Product Code Cutting Diameter Cutting Length Product Code Cutting Diameter Cutting Length
产品编号 刃徑(mm) 刃長(mm) 产品编号 刃徑(mm) 刃長(mm)
200x-0206 2 1/4,1/2 6 200x-05540 5.5 40
200x-0208 2 | 8 200x-0612 6 1/2 12
200x-02506 2.5 6 200x-0615 6 | 15
8
鑼 200x-02508 2.5 12 200x-0620 6 20
200x-0622
6
200x-0312
22
3
刀 200x-0315 3 15 200x-0625 6 25
28
18
200x-0318
200x-0628
3
6
系 200x-0320 3 20 200x-0630 6 30
列 200x-0412 4 12 200x-0635 6 35
200x-0415
6
15
200x-0640
40
4
200x-0420 4 20 200x-0715 7 15
200x-0425 4 25 200x-0720 7 20
200x-0430 4 30 200x-0725 7 25
200x-04512 4.5 12 200x-0730 7 30
200x-04515 4.5 15 200x-0820 8 20
200x-04520 4.5 20 200x-0822 8 22
200x-04522 4.5 22 200x-0825 8 25
200x-04525 4.5 25 200x-0830 8 30
200x-04530 4.5 30 200x-0832 8 32
200x-0512 5 12 200x-0835 8 35
200x-0515 5 15 200x-0840 8 40
200x-0520 5 20 200x-0850 8 50
200x-0522 5 22 200x-1030 10 30
200x-0525 5 25 200x-1040 10 40
200x-0530 5 30 200x-1045 10 45
200x-05512 5.5 12 200x-1230 12 30
200x-05515 5.5 15 200x-1240 12 40
200x-05520 5.5 20 200x-1245 12 45
200x-05522 5.5 22
200x-05525 5.5 25
200x-05528 5.5 28
200x-05530 5.5 30
200x-05535 5.5 35

13
