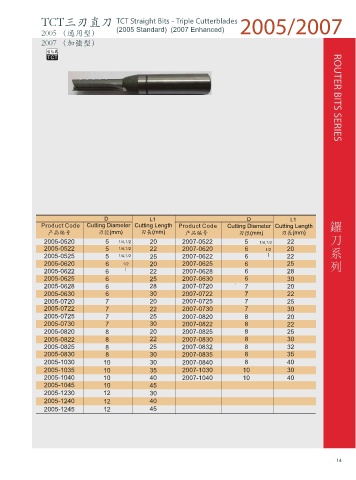

Page 16 - 2020和霖目錄全

TCT三刃直刀 TCT Straight Bits - Triple Cutterblades 2005/2007

2005 （通用型） (2005 Standard) (2007 Enhanced)
2007 （加強型） ROUTER BITS SERIES

D L1 D L1
Product Code Cutting Diameter Cutting Length Product Code Cutting Diameter Cutting Length 鑼
产品编号 刃徑(mm) 刃長(mm) 产品编号 刃徑(mm) 刃長(mm)
2005-0520 5 1/4,1/2 20 2007-0522 5 1/4,1/2 22 刀
2005-0522 5 1/4,1/2 22 2007-0620 6 1/2 20
2005-0525 5 1/4,1/2 25 2007-0622 6 | 22 系
2005-0620 6 1/2 20 2007-0625 6 25 列
2005-0622 6 | 22 2007-0628 6 28
2005-0625 6 25 2007-0630 6 30
2005-0628 6 28 2007-0720 7 20
2005-0630 6 30 2007-0722 7 22
2005-0720 7 20 2007-0725 7 25
2005-0722 7 22 2007-0730 7 30
2005-0725 7 25 2007-0820 8 20
2005-0730 7 30 2007-0822 8 22
2005-0820 8 20 2007-0825 8 25
2005-0822 8 22 2007-0830 8 30
2005-0825 8 25 2007-0832 8 32
2005-0830 8 30 2007-0835 8 35
2005-1030 10 30 2007-0840 8 40
2005-1035 10 35 2007-1030 10 30
2005-1040 10 40 2007-1040 10 40
2005-1045 10 45
2005-1230 12 30
2005-1240 12 40
2005-1245 12 45

14
