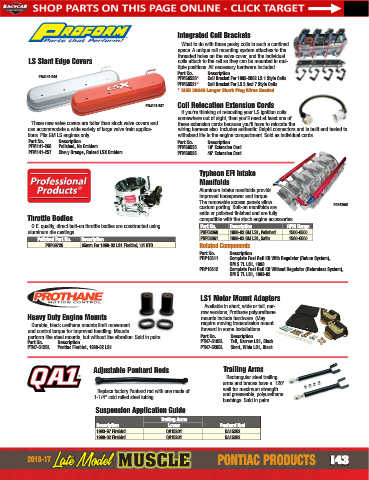

Page 144 - 2016-2017 Racecar Engineering Late Model Muscle Car Parts and Accessories Catalog

Integrated Coil Brackets
What to do with those pesky coils in such a confined
space. A unique rail mounting system attaches to the
threaded holes on the valve cover, and the individual
LS Slant Edge Covers coils attach to the rail so they can be mounted in mul-
tiple positions. All necessary hardware included.
Part No. Description
PFM141-266 PFM69520* .....Coil Bracket For 1998-2002 LS 1 Style Coils
PFM69521* .....Coil Bracket For LS 3 And 7 Style Coils
* MSD 39849 Longer Shark Plug Wires Needed
Coil Relocation Extension Cords
PFM141-257
If you're thinking of relocating your LS ignition coils
somewhere out of sight, then you'll need at least one of
These new valve covers are taller than stock valve covers and these extension cords because you'll have to relocate the
can accommodate a wide variety of large valve train applica- wiring harness also. Includes authentic Delphi connectors and is built and tested to
tions. Fits GM LS engines only. withstand life in the engine compartment. Sold as individual cords.
Part No. Description Part No. Description
PFM141-266 ....Polished, No Emblem PFM69525.......18" Extension Cord
PFM141-257 ....Chevy Orange, Raised LSX Emblem PFM69526.......46" Extension Cord

Typhoon EFI Intake
Manifolds
Aluminum intake manifolds provide e e
improved horsepower and torque.
The removable access panels allow
custom porting. Bolt-on manifolds are PRP52061
satin or polished finished and are fully
Throttle Bodies compatible with the stock engine accessories.
sories.
O.E. quality, direct bolt-on throttle bodies are constructed using Part No. Description R
RPM Range
aluminum die castings. PRP52060 1998-02 GM LS1, Polished 1500-6500
Polished Part No. Description PRP52061 1998-02 GM LS1, Satin 1500-6500
PRP69726 85mm For 1998-02 LS1 Firebird, '04 GTO Related Components
Part No. Description
PRP10611 .......Complete Fuel Rail Kit With Regulator (Return System),
GM 5.7L LS1, 1998
PRP10612 .......Complete Fuel Rail Kit Without Regulator (Returnless System),
GM 5.7L LS1, 1999-02

LS1 Motor Mount Adapters
Available in short, wide or tall, nar-
row versions, Prothane polyurethane
Heavy Duty Engine Mounts mounts include hardware. (May
Durable, black urethane mounts limit movement require moving transmission mount
and control torque for improved handling. Mounts forward in some installations.
perform like steel mounts, but without the vibration. Sold in pairs. Part No. Description
Part No. Description PTN7-519BL ....Tall, Narrow LS1, Black
PTN7-512BL ....Pontiac Firebird, 1998-02 LS1 PTN7-520BL ....Short, Wide LS1, Black

Adjustable Panhard Rods Trailing Arms
Rectangular steel trailing
arms and braces have a .120"
wall for maximum strength
Replace factory Panhard rod with one made of
1-1/4" cold rolled steel tubing. and greaseable, polyurethane
bushings. Sold in pairs.
Suspension Application Guide
Trailing Arms
Description Lower Panhard Rod
1993-97 Firebird QA15204 QA15202
1998-02 Firebird QA15204 QA15202

2016-17 PONTIAC PRODUCTS 143
