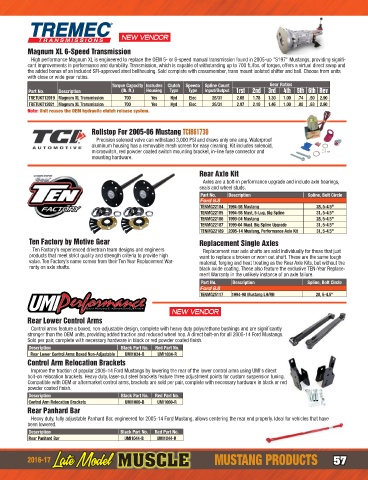

Page 58 - 2016-2017 Racecar Engineering Late Model Muscle Car Parts and Accessories Catalog

Magnum XL 6-Speed Transmission
High performance Magnum XL is engineered to replace the OEM 5- or 6-speed manual transmission found in 2005-up "S197" Mustangs, providing signifi-
cant improvements in performance and durability. Transmission, which is capable of withstanding up to 700 ft./lbs. of torque, offers a virtual direct swap and
the added bonus of an included SFI-approved steel bellhousing. Sold complete with crossmember, trans mount isolated shifter and ball. Choose from units
with close or wide gear ratios.
Torque Capacity Includes Clutch Speedo Spline Count Gear Ratios
Part No. Description (lb. ft.) Housing Type Type Input/Output 1rst 2nd 3rd 4th 5th 6th Rev
TRETUKT12019 Magnum XL Transmission 700 Yes Hyd Elec 26/31 2.66 1.78 1.30 1.00 .74 .50 2.90
TRETUKT12021 Magnum XL Transmission 700 Yes Hyd Elec 26/31 2.97 2.10 1.46 1.00 .80 .63 2.90
Note: Unit reuses the OEM hydraulic clutch release system.

Rollstop For 2005-06 Mustang TCI861730
Precision solenoid valve can withstand 3,000 PSI and draws only one amp. Waterproof
aluminum housing has a removable mesh screen for easy cleaning. Kit includes solenoid,
microswitch, red powder coated switch mounting bracket, in-line fuse connector and
mounting hardware.

Rear Axle Kit
Axles are a bolt-in performance upgrade and include axle bearings,
seals and wheel studs.
Part No. Description Spline, Bolt Circle
;dgY -#-
TENMG22184 1994-98 Mustang 28, 5-4.5"
TENMG22185 1994-98 Must, 5-Lug, Big Spline 31, 5-4.5"
TENMG22186 1999-04 Mustang 28, 5-4.5"
TENMG22187 1999-04 Must. Big Spline Upgrade 31, 5-4.5"
TENMG22189 2005-14 Mustang, Performance Axle Kit 31, 5-4.5"
Ten Factory by Motive Gear Replacement Single Axles
Ten Factory’s experienced drivetrain team designs and engineers Replacement rear axle shafts are sold individually for those that just
products that meet strict quality and strength criteria to provide high want to replace a broken or worn out shaft. These are the same tough
value. Ten Factory’s name comes from their Ten Year Replacement War- material, forging and heat treating as the Rear Axle Kits, but without the
ranty on axle shafts. black oxide coating. These also feature the exclusive TEN-Year Replace-
ment Warranty in the unlikely instance of an axle failure.
Part No. Description Spline, Bolt Circle
;dgY -#-
TENMG25117 1994-98 Mustang LH/RH 28, 5-4.5"

Rear Lower Control Arms

Control arms feature a boxed, non-adjustable design, complete with heavy duty polyurethane bushings and are significantly
stronger than the OEM units, providing added traction and reduced wheel hop. A direct bolt-on for all 2005-14 Ford Mustangs.
Sold per pair, complete with necessary hardware in black or red powder coated finish.
Description Black Part No. Red Part No.
Rear Lower Control Arms Boxed Non-Adjustable UMI1034-B UMI1034-R
Control Arm Relocation Brackets
Improve the traction of popular 2005-14 Ford Mustangs by lowering the rear of the lower control arms using UMI's direct
bolt-on relocation brackets. Heavy duty, laser-cut steel brackets feature three adjustment points for custom suspension tuning.
Compatible with OEM or aftermarket control arms, brackets are sold per pair, complete with necessary hardware in black or red
powder coated finish.
Description Black Part No. Red Part No.
Control Arm Relocation Brackets UMI1060-B UMI1060-R
Rear Panhard Bar
Heavy duty, fully adjustable Panhard Bar, engineered for 2005-14 Ford Mustang, allows centering the rear end properly. Ideal for vehicles that have
been lowered.
Description Black Part No. Red Part No.
Rear Panhard Bar UMI1044-B UMI1044-R

57
57
57
2016-17 MUSTANG PRODUCTS 57
MUSTANG PRODUCTS
