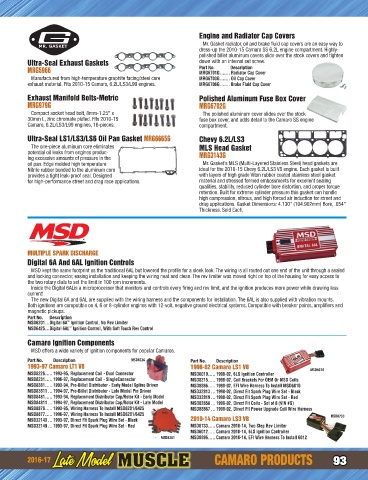

Page 94 - 2016-2017 Racecar Engineering Late Model Muscle Car Parts and Accessories Catalog

Engine and Radiator Cap Covers
Mr. Gasket radiator, oil and brake fluid cap covers are an easy way to
dress-up the 2010-15 Camaro SS 6.2L engine compartment. Highly-
polished billet aluminum covers slide over the stock covers and tighten
Ultra-Seal Exhaust Gaskets down with an internal set screw.
MRG5966 Part No. Description
MRG6701G ....... Radiator Cap Cover
Manufactured from high-temperature graphite facing/steel core MRG6703G ....... Oil Cap Cover
exhaust material. Fits 2010-15 Camaro, 6.2L/LS3/L99 engines. MRG6706G ....... Brake Fluid Cap Cover
Exhaust Manifold Bolts-Metric Polished Aluminum Fuse Box Cover
MRG979G MRG6702G
Compact socket head bolt, 8mm-1.25" x The polished aluminum cover slides over the stock
30mm L, zinc chromate plated. Fits 2010-15 fuse box cover, and adds detail to the Camaro SS engine
Camaro, 6.2L/LS3/L99 engines, 16-pieces. compartment.
Ultra-Seal LS1/LS3/LS6 Oil Pan Gasket MRG6665G Chevy 6.2L/LS3

The one-piece aluminum core eliminates MLS Head Gasket
potential oil leaks from engines produc- MRG3143G
ing excessive amounts of pressure in the
oil pan. Edge molded high temperature Mr. Gasket’s MLS (Multi-Layered Stainless Steel) head gaskets are
Nitrile rubber bonded to the aluminum core ideal for the 2010-15 Chevy 6.2L/LS3 V8 engine. Each gasket is built
provides a tight leak-proof seal. Designed with layers of high grade Viton rubber coated stainless steel gasket
for high-performance street and drag race applications. material and stressed formed embossments for excellent sealing
qualities, stability, reduced cylinder bore distortion, and proper torque
retention. Built for extreme cylinder pressure this gasket can handle
high compression, nitrous, and high forced air induction for street and
drag applications. Gasket Dimensions: 4.130" (104.902mm) Bore, .054"
Thickness. Sold Each.

MULTIPLE SPARK DISCHARGE
Digital 6A And 6AL Ignition Controls
MSD kept the same footprint as the traditional 6AL but lowered the profile for a sleek look. The wiring is all routed out one end of the unit through a sealed
and locking connector, easing installation and keeping the wiring neat and clean. The rev limiter was moved right on top of the housing for easy access to
the two rotary dials to set the limit in 100 rpm increments.
Inside the Digital 6ALis a microprocessor that monitors and controls every firing and rev limit, and the ignition produces more power while drawing less
current!
The new Digital 6A and 6AL are supplied with the wiring harness and the components for installation. The 6AL is also supplied with vibration mounts.
Both ignitions are compatible on 4, 6 or 8-cylinder engines with 12-volt, negative ground electrical systems. Compatible with breaker points, amplifiers and
magnetic pickups.
Part No. Description
MSD6201 ...Digital 6A Ignition Control, No Rev Limiter
™
MSD6425 ...Digital 6AL Ignition Control, With Soft Touch Rev Control
™
Camaro Ignition Components
MSD offers a wide variety of ignition components for popular Camaros.
Part No. Description MSD8226 Part No. Description
1993-97 Camaro LT1 V8 1998-02 Camaro LS1 V8 MSD6010
MSD8226 ..... 1993-95, Replacement Coil - Dual Connector MSD6010 ..... 1998-02, 6LS Ignition Controller
MSD8231 ..... 1996-97, Replacement Coil - SingleConnector MSD8215 ..... 1998-02, Coil Brackets For OEM Or MSD Coils
MSD8381 ..... 1993-94, Pro-Billet Distributor - Early Model Spline Driven MSD8886 ..... 1998-02, EFI Wire Harness To Install MSD6010
MSD83811 ... 1994-97, Pro-Billet Distributor - Late Model Pin Driven MSD32813 ... 1998-02, Direct Fit Spark Plug Wire Set - Black
MSD8481 ..... 1993-94, Replacement Distributor Cap/Rotor Kit - Early Model MSD32819 ... 1998-02, Direct Fit Spark Plug Wire Set - Red
MSD84811 ... 1994-97, Replacement Distributor Cap/Rotor Kit - Late Model MSD82858 ... 1998-02, Direct Fit Coils - Set of 8 (VIN #G)
MSD8876 ..... 1993-95, Wiring Harness To Install MSD6201/6425 MSD88867 ... 1998-02, Direct Fit Power Upgrade Coil Wire Harness
MSD8877 ..... 1996-97, Wiring Harness To Install MSD6201/6425 MSD8733
MSD32143 ... 1993-97, Direct Fit Spark Plug Wire Set - Black 2010-14 Camaro LS3 V8
MSD32149 ... 1993-97, Direct Fit Spark Plug Wire Set - Red MSD8733 ..... Camaro 2010-14, Two Step Rev Limiter
MSD6012 ..... Camaro 2010-14, 6LS Ignition Controller
MSD8381 MSD8886 ..... Camaro 2010-14, EFI Wire Harness To Install 6012

93
93
2016-17 CAMARO PRODUCTS 93
