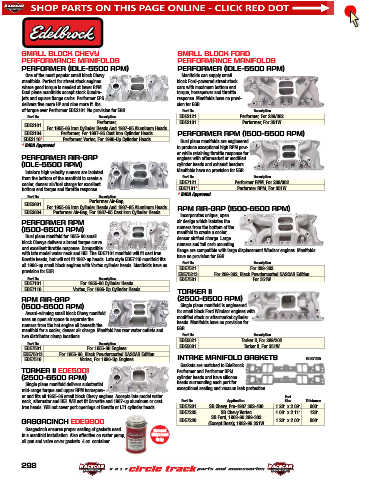

Page 299 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

SMALL BLOCK CHEVY SMALL BLOCK FORD
PERFORMANCE MANIFOLDS PERFORMANCE MANIFOLDS
PERFORMER (IDLE-5500 RPM) PERFORMER (IDLE-5500 RPM)
One of the most popular small block Chevy Manifolds can supply small
manifolds. Perfect for street stock engines block Ford-powered street stock
where good torque is needed at lower RPM. cars with maximum bottom end
Dual plane manifolds accept stock Quadra- torque, horsepower and throttle
jets and square flange carbs. Performer EPS response. Manifolds have no provi-
delivers five more HP and nine more ft. lbs. sion for EGR.
of torque over Performer EDE2101. No provision for EGR. Part No. Description
Part No. Description EDE2121 Performer, For 289/302
Performer, EDE2181 Performer, For 351W
EDE2101
For 1955-86 Iron Cylinder Heads And 1987-95 Aluminum Heads
EDE2104 Performer, For 1987-95 Cast Iron Cylinder Heads PERFORMER RPM (1500-6500 RPM)
EDE2116* Performer, Vortec, For 1996-Up Cylinder Heads Dual plane manifolds are engineered
* IMCA Approved to produce exceptional high RPM pow-
er while retaining throttle response for
PERFORMER AIR-GAP engines with aftermarket or modified
(IDLE-5500 RPM) cylinder heads and exhaust headers.
Intake's high velocity runners are isolated Manifolds have no provision for EGR.
from the bottom of the manifold to create a Part No. Description
cooler, denser air/fuel charge for excellent EDE7121 Performer RPM, For 289/302
bottom end torque and throttle response. EDE7181* Performer RPM, For 351W
Part No. Description * IMCA Approved
Performer Air-Gap,
EDE2601 For 1955-86 Iron Cylinder Heads And 1987-95 Aluminum Heads RPM AIR-GAP (1500-6500 RPM)
EDE2604 Performer Air-Gap, For 1987-95 Cast Iron Cylinder Heads
Incorporates unique, open
PERFORMER RPM air design which isolates the
(1500-6500 RPM) runners from the bottom of the
manifold to create a cooler,
Dual plane manifold for 1955-86 small denser air/fuel charge. Large
block Chevys delivers a broad torque curve runners and tall carb mounting
and excellent throttle response. Compatible flange are compatible with large displacement Windsor engines. Manifolds
with late model water neck and HEI. The EDE7101 manifold will fit cast iron have no provision for EGR.
Bowtie heads, but will not fit 1987-up heads. Late style EDE7116 manifold fits Part No. Description
all 1996-up small block engines with Vortec cylinder heads. Manifolds have no EDE7521 For 289-302
provision for EGR. EDE75213 For 289-302, Black Powdercoated NASCAR Edition
Part No. Description EDE7581 For 351W
EDE7101 For 1955-86 Cylinder Heads
EDE7116 Vortec, For 1996-Up Cylinder Heads TORKER II
RPM AIR-GAP (2500-6500 RPM)
(1500-6500 RPM) Single plane manifold is engineered
Award-winning small block Chevy manifold for small block Ford Windsor engines with
uses an open air space to separate the modified stock or aftermarket cylinder
runners from the hot engine oil beneath the heads. Manifolds have no provision for
manifold for a cooler, denser air charge. Manifold has rear water outlets and EGR.
two distributor clamp locations. Part No. Description
Part No. Description EDE5021 Torker II, For 289/302
Torker II, For 351W
EDE5081
EDE7501 For 1955-86 Engines
EDE75013 For 1955-86, Black Powdercoated NASCAR Edition
EDE7516 Vortec, For 1996-Up Engines INTAKE MANIFOLD GASKETS EDE7235
Gaskets are matched to Edelbrock
TORKER II EDE5001 Performer and Performer RPM
(2500-6500 RPM) cylinder heads and have silicone
Single plane manifold delivers substantial beads surrounding each port for
mid-range torque and upper RPM horsepow- exceptional sealing and vacuum leak protection.
er and fits all 1955-86 small block Chevy engines. Accepts late model water Port
neck, alternator and HEI. Will not fit Corvette and 1987-up aluminum or cast Part No. Application Size Thickness
iron heads. Will not cover port openings of Bowtie or LT1 cylinder heads. EDE7201 SB Chevy, Pre-1987 302-400 1.28" x 2.09" .060"
EDE7235 SB Chevy Vortec 1.08" x 2.11" .120"
SB Ford, 1963-96 289-302
GASGACINCH EDE9300 EDE7220 (Except Boss); 1982-96 351W 1.20" x 2.00" .060"
Gasgacinch ensures proper sealing of gaskets used Ground
in a manifold installation. Also effective on water pump, Shipment
oil pan and valve cover gaskets. 4 oz. container. Only

298
