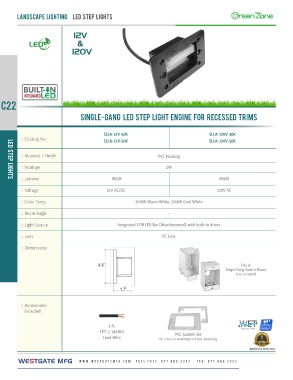

Page 128 - Westgate Catalog #34 Ver.2

LANDSCAPE LIGHTING LED STEP LIGHTS

12V
&
120V

C22 SINGLE-GANG led STEP LIGHT ENGINE FOR RECESSED TRIMS

:: Catalog No.led STEP lightsSLEA-12V-30K SLEA-120V-30K
SLEA-12V-50K SLEA-120V-50K
:: Material / Finish
:: Wattage PVC Housing
:: Lumens
:: Voltage 2W
:: Color Temp
:: Beam Angle 86LM 86LM
:: Light Source
:: Lens 12V AC/DC 120V AC
:: Dimensions
3000K Warm White, 5000K Cool White

-

Integrated COB LED Bar (Weatherproof) with built-in driver

PC Lens

Fits in
Single Gang Switch Boxes

(not included)

:: Accessories
included

1 ft. PVC Gasket Set location
SPT-2 18AWG
for J-box or weatherproof box mounting Applies to trims too
Lead Wire

WESTGATE MFG W W W . W E S T G A T E M F G . C O M T O L L F R E E : 8 7 7 . 8 0 5 . 2 2 5 2 F A X : 8 7 7 . 8 0 9 . 2 2 5 2
