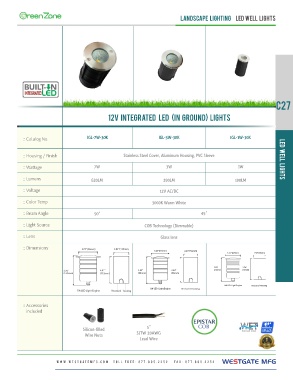

Page 133 - Westgate Catalog #34 Ver.2

LANDSCAPE LIGHTING LED WELL LIGHTS

C27

12V Integrated LED (In Ground) LightS

:: Catalog No. IGL-7W-30K IGL-3W-30K IGL-1W-30K led WELL lights
:: Housing / Finish
:: Wattage 7W Stainless Steel Cover, Aluminum Housing, PVC Sleeve 1W
:: Lumens 620LM 3W 100LM
:: Voltage
:: Color Temp 90° 290LM
:: Beam Angle 12V AC/DC
:: Light Source 3000K Warm White
:: Lens
:: Dimensions 45°

:: Accessories COB Technology (Dimmable)
included Glass lens

2.44” (62mm) 2.20” (56mm) 1.65” (42mm) 1.50” (38mm)

3.54” 3.39” 2.87” 2.76”
(90mm) (86mm) (73mm) (70mm)

1W LED Light Engine Recessed Housing

3W LED Light Engine Recessed Housing

Silicon-filled 5” COB location
Wire Nuts SJTW 20AWG

Lead Wire

W W W . W E S T G AT E M F G . C O M T O L L F R E E : 8 7 7 . 8 0 5 . 2 2 5 2 FA X : 8 7 7 . 8 0 9 . 2 2 5 2 WESTGATE MFG
