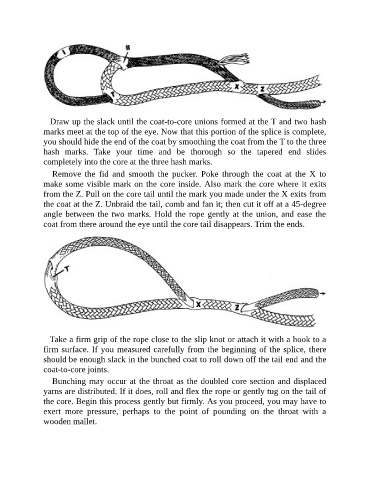

Draw up the slack until the coat-to-core unions formed at the T and two hash
               marks meet at the top of the eye. Now that this portion of the splice is complete,
               you should hide the end of the coat by smoothing the coat from the T to the three

               hash  marks.  Take  your  time  and  be  thorough  so  the  tapered  end  slides
               completely into the core at the three hash marks.
                  Remove  the  fid  and  smooth  the  pucker.  Poke  through  the  coat  at  the  X  to
               make some visible mark on the core inside. Also mark the core where it exits
               from the Z. Pull on the core tail until the mark you made under the X exits from
               the coat at the Z. Unbraid the tail, comb and fan it; then cut it off at a 45-degree

               angle between the two marks. Hold the rope gently at the union, and ease the
               coat from there around the eye until the core tail disappears. Trim the ends.





















                  Take a firm grip of the rope close to the slip knot or attach it with a hook to a
               firm surface. If you measured carefully from the beginning of the splice, there

               should be enough slack in the bunched coat to roll down off the tail end and the
               coat-to-core joints.
                  Bunching may occur at the throat as the doubled core section and displaced
               yarns are distributed. If it does, roll and flex the rope or gently tug on the tail of
               the core. Begin this process gently but firmly. As you proceed, you may have to
               exert  more  pressure,  perhaps  to  the  point  of  pounding  on  the  throat  with  a
               wooden mallet.
