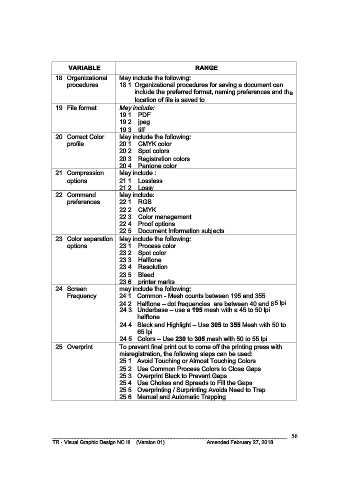

Page 373 - aREA ix eXHIBITS

VARIABLE RANGE
18. Organizational May include the following:
procedures 18.1. Organizational procedures for saving a document can
include the preferred format, naming preferences and the
location of file is saved to.
19. File format May include:
19.1. PDF
19.2. jpeg
19.3. tiff
20. Correct Color May include the following:
profile 20.1. CMYK color
20.2. Spot colors
20.3. Registration colors
20.4. Pantone color
21. Compression May include :
options 21.1. Lossless
21.2. Lossy
22. Command May include:
preferences 22.1. RGB
22.2. CMYK
22.3. Color management
22.4. Proof options
22.5. Document Information subjects
23. Color separation May include the following:
options 23.1. Process color
23.2. Spot color
23.3. Halftone
23.4. Resolution
23.5. Bleed
23.6. printer marks
24. Screen may include the following:
Frequency 24.1. Common - Mesh counts between 195 and 355
24.2. Halftone – dot frequencies are between 40 and 65 lpi.
24.3. Underbase – use a 195 mesh with a 45 to 50 lpi
halftone.
24.4. Black and Highlight – Use 305 to 355 Mesh with 50 to
65 lpi.
24.5. Colors – Use 230 to 305 mesh with 50 to 55 lpi.
25. Overprint To prevent final print out to come off the printing press with
misregistration, the following steps can be used:
25.1. Avoid Touching or Almost Touching Colors
25.2. Use Common Process Colors to Close Gaps
25.3. Overprint Black to Prevent Gaps
25.4. Use Chokes and Spreads to Fill the Gaps
25.5. Overprinting / Surprinting Avoids Need to Trap
25.6. Manual and Automatic Trapping

_________________________________________________________________________________ 56
TR - Visual Graphic Design NC III (Version 01) Amended February 27, 2018
