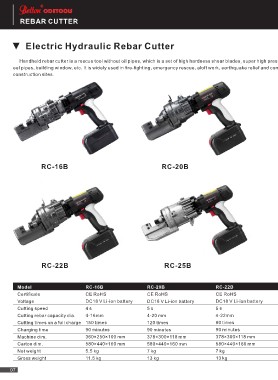

Page 14 - BELTON E-CATALOG270419

REBAR CUTTER

Electric Hydraulic Rebar Cutter

Handheld rebar cutter is a rescue tool without oil pipes, which is a set of high hardness shear blades, super high press
eel pipes, building window, etc. It is widely used in fire-fighting, emergency rescue, aloft work, earthquake relief and com
construction sites.

RC-16B RC-20B

RC-22B RC-25B

Model RC-16B RC-20B RC-22B
Certificate CE RoHS CE RoHS CE RoHS
Voltage DC18 V Li-ion battery DC18 V Li-ion battery DC18 V Li-ion battery
Cutting speed 4s 5s 5s
Cutting rebar capacity dia. 4-16mm 4-20 mm 4-22mm
Cutting times on a full charge 150 times 120 times 90 times
Charging time 90 minutes 90 minutes 90 minutes
Machine dim. 360×250×100 mm 378×300×118 mm 378×300×118 mm
Carton dim. 580×440×160 mm 580×440×160 mm 580×440×160 mm
Net weight 5.5 kg 7 kg 7 kg
Gross weight 11.5 kg 13 kg 13 kg
