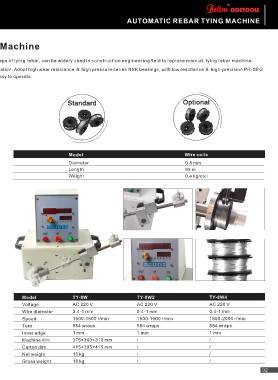

AUTOMATIC REBAR TYING MACHINE

Machine

eps of tying rebar, can be widely used in construction engineering field to replace manual tying rebar machine.
mation. Adopt high wear resistance ＆ high pressure series NSK bearings, with low resistance＆ high-precision PR-SEG

asy to operate.

Standard Optional

Model Wire coils

Diameter 0.8 mm
Length 95 m
Weight 0.4 kg/coil

Model TY-8W TY-8W2 TY-8W4
Voltage AC 220 V AC 220 V AC 220 V
Wire diameter 0.4-1 mm 0.4-1 mm 0.4-1 mm
Speed 1500-1600 r/min 1500-1600 r/min 1800-2000 r/min
Turn 584 wraps 584 wraps 584 wraps
Inner edge 1 mm 1 mm 1 mm
Machine dim. 375×360×310 mm / /
Carton dim. 415×305×415 mm / /
Net weight 15 kg / /
Gross weight 18 kg / /
