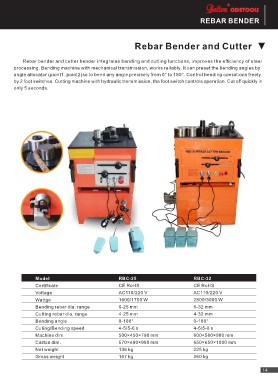

Page 21 - BELTON E-CATALOG270419

REBAR BENDER

Rebar Bender and Cutter

Rebar bender and cutter bender integrates bending and cutting functions, improves the efficiency of steel
processing. Bending machine with mechanical transmission, works reliably. It can preset the bending angles by
angle allocator (point1, point2)so to bend any angle precisely from 0° to 180°. Control bending operations freely
by 2 foot switches. Cutting machine with hydraulic transmission, the foot switch controls operation. Cut off quickly in
only 5 seconds.

Model RBC-25 RBC-32
Certificate CE RoHS CE RoHS
Voltage AC110/220 V AC110/220 V
Wattge 1600/1700 W 2800/3000 W
Bending rebar dia. range 6-25 mm 6-32 mm
Cutting rebar dia. range 4-25 mm 4-32 mm
Bending angle 0-180° 0-180°
Cuting/Bending speed 4-5/5-6 s 4-5/5-6 s
Machine dim. 500×450×790 mm 600×580×980 mm
Carton dim. 570×480×980 mm 650×650×1000 mm
Net weight 136 kg 225 kg
Gross weight 167 kg 260 kg
