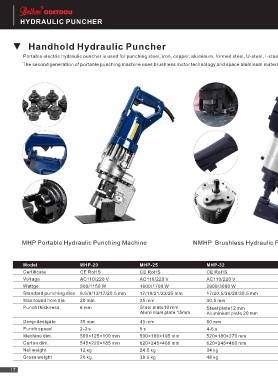

Page 24 - BELTON E-CATALOG270419

HYDRAULIC PUNCHER

Handhold Hydraulic Puncher

Portable electric hydraulic puncher is used for punching steel, iron, copper, aluminum, formed steel, U-steel, I-stee
The secondgeneration of portable punching machine uses brushless motor technologyand space aluminum materia

MHP Portable Hydraulic Punching Machine NMHP Brushless Hydraulic P

Model MHP-20 MHP-25 MHP-32
Certificate CE RoHS CE RoHS CE RoHS
Voltage AC110/220 V AC110/220 V AC110/220 V
Wattge 900/1150 W 1600/1700 W 2900/3000 W
Standard punching dies 6.5/9/13/17/20.5 mm 17/19/21/23/25 mm 17/20.5/26/28/30.5 mm
Max round hole dia. 20 mm 25 mm 30.5 mm
Punch thickness 6 mm Steel plate10 mm Steel plate12 mm
Aluminium plate 15mm Aluminium plate 20 mm
Deep-desigate 35 mm
Punch speed 2-3 s 45 mm 60 mm
Machine dim. 500×125×100 mm 5s 4-6 s
Carton dim. 545×220×185 mm 500×100×195 mm 520×180×270 mm
Net weight 12 kg 620×245×460 mm 620×245×460 mm
Gross weight 20 kg 24.5 kg 34 kg
38.5 kg 48 kg
17
