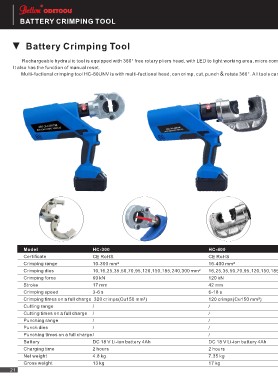

BATTERY CRIMPING TOOL

Battery Crimping Tool

Rechargeable hydraulic tool is equipped with 360° free rotary pliers head, with LED to light working area, micro com
It also has the function of manual reset.

Multi-fuctionalcrimping tool HC-60UNV is with multi-fuctionalhead,cancrimp, cut,punch& rotate360°. All tools can

Model HC-300 HC-400

Certificate CE RoHS CE RoHS

Crimping range 10-300 mm² 16-400 mm²

Crimping dies 10,16,25,35,50,70,95,120,150,185,240,300 mm² 16,25,35,50,70,95,120,150,185

Crimping force 60 kN 120 kN

Stroke 17 mm 42 mm

Crimping speed 3-6 s 6-18 s

Crimping times on a full charge 320 crimps(Cu150 mm²) 120 crimps(Cu150 mm²)

Cutting range / /

Cutting times on a full charge / /

Punching range / /

Punch dies / /

Punching times on a full charge / /

Battery DC 18 V Li-ion battery 4Ah DC 18 V Li-ion battery 4Ah

Charging time 2 hours 2 hours

Net weight 4.8 kg 7.35 kg

Gross weight 13 kg 17 kg

21
