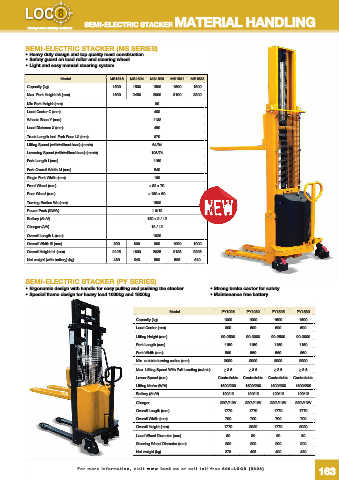

SeMI-eLeCtRIC StaCKeR MATERIAL HANDLING
Storage and handling solutions

SeMI-eLeCtRIC StaCKeR (MS SeRIeS)
• Heavy duty design and top quality mast construction
• Safety guard on load roller and steering wheel
• Light and easy manual steering system

Model MS1516 MS1524 MS1529 MS1531 MS1533
Capacity (kg) 1500 1500 1500 1500 1500
Max. Fork Height h3 (mm) 1600 2450 2900 3100 3300
Min.Fork Height (mm) 90
Load Center C (mm) 400
Wheels Base Y (mm) 1132
Load Distance X (mm) 450
Truck Length incl. Fork Face L2 (mm) 670
Lifting Speed (with/without load) (mm/s) 64/94
Lowering Speed (with/without load) (mm/s) 106/74
Fork Length I (mm) 1150
Fork Overall Width M (mm) 540
Single Fork Width (mm) 160
Front Wheel (mm) Ф 82 x 70
Rear Wheel (mm) Ф 180 x 50
Turning Radius Wa (mm) 1500
Power Pack (KW/V) 1.6/12
Battery (Ah/V) 180 x 2 / 12
Charger (A/V) 12 / 12
Overall Length L (mm) 1820
Overall Width B (mm) 800 800 800 1000 1000
Overall Height h1 (mm) 2125 1800 2025 2125 2225
Net weight (with battery) (kg) 480 540 580 595 610

SeMI-eLeCtRIC StaCKeR (Py SeRIeS)
• ergonomic design with handle for easy pulling and pushing the stacker • Strong brake castor for safety
• Special frame design for heavy load 1000kg and 1500kg • Maintenance free battery

Model PY1025 PY1030 PY1525 PY1530
Capacity (kg) 1000 1000 1500 1500
Load Center (mm) 600 600 600 600
Lifting Height (mm) 90-2500 90-3000 90-2500 90-3000
Fork Length (mm) 1150 1150 1150 1150
Fork Width (mm) 560 560 560 560
Min. outside turning radius (mm) 2000 2000 2000 2000
Max. Lifting Speed With Full Loading (m/min) ≥ 3.6 ≥ 3.6 ≥ 3.6 ≥ 3.6
Lower Speed (mm) Controllable Controllable Controllable Controllable
Lifting Motor (W/V) 1600/200 1600/200 1600/200 1600/200
Battery (Ah/V) 120/12 120/12 120/12 120/12
Charger 220V/12V 220V/12V 220V/12V 220V/12V
Overall Length (mm) 1770 1770 1770 1770
Overall Width (mm) 700 700 700 700
Overall Height (mm) 1770 2020 1770 2020
Load Wheel Diameter (mm) 80 80 80 80
Steering Wheel Diameter (mm) 200 200 200 200
Net weight (kg) 375 405 400 430

163
