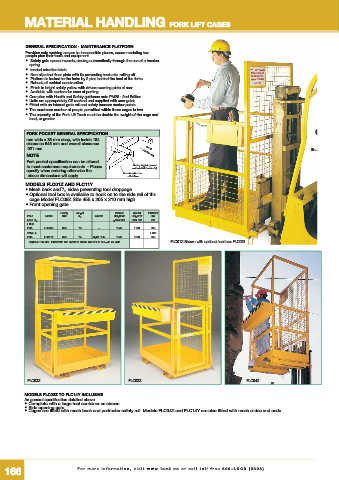

MATERIAL HANDLING FORK LIFt CaGeS

GeneRaL SPeCIFICatIOn - MaIntenanCe PLatFORM
Provides safe working access to inaccessible places, accommodating two
people plus their tools and equipment.
• Safety gate opens inwards, closing automatically through the use of a tension
spring
• loaded retention latch.
• Non-slip steel floor plate with lip preventing tools etc. rolling off.
• Platform is locked to the forks by 2 pins behind the heel of the forks.
• Robust, all welded construction.
• Finish in bright safety yellow with drivers warning plate at rear.
• Available with castors for ease of parking.
• Complies with Health and Safety guidance note PM28 - 2nd Edition.
• Units are appropriately CE marked and supplied with user guide.
• Fitted with an internal grab rail and safety harness anchor points
• The maximum number of people permitted within these cages is two.
• The capacity of the Fork Lift Truck must be double the weight of the cage and
load, or greater

FORK POCKet GeneRaL SPeCIFICatIOn
mm wide x 83 mm deep, with inside 184
clearance 545 mm and overall clearance
.921 mm mm 65
nOte .Fork tine entry
Fork pocket specification can be altered
to meet customers requirements. - Please Floating toggle to prevent
specify when ordering otherwise the .accidental withdrawal of pin
.above dimensions will apply Pin locks behind heel
.of fork tines
MODeLS FLC01Z anD FLC11y
1
• Mesh back and / sides preventing tool droppage.
2
• Optional tool box is available to hook on to the side rail of the
• cage Model FLC09Z Size 455 x 205 x 210 mm high.
• Front opening gate.
Evenly Weight Internal Overall Platform
Price Model Dist kg Wheels Height of Height at Size
Load, kg gates mm Rear mm mm
x 990
POA FLC01Z 250 70 — 1040 1780 990
swivel 4 x 990
POA FLC11Y 250 74 nylon 125 1040 1830 990
Optional Tool Box, Fitted with two hooks to enable the box to hang on the side FLC01Z Shown with optional tool box FLC09Z

FLC03Z FLC02Z FLC04Z

MODeLS FLC02Z tO FLC14y InCLUSIVe
As general specification detailed above.
• Complete with a large tool container as shown.
• Side opening gate.
• Cages are fitted with mesh back and perimeter safety rail. Models FLC04Z and FLC14Y are also fitted with mesh sides and ends.
