SIte MaIntenanCePReMISeS
POStS & BaRRIeRS
Storage and handling solutions

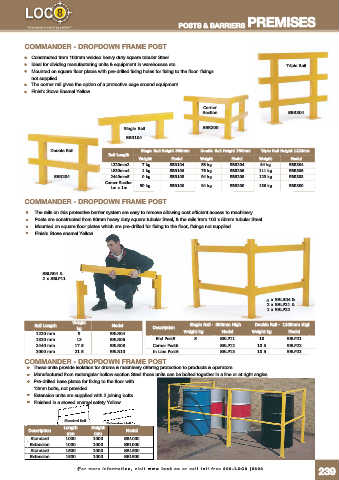

COMManDeR - DROPDOWn FRaMe POSt

Constructed from 100mm welded heavy duty square tubular Steel
Ideal for dividing manufacturing units & equipment in warehouses etc Triple Rail
Mounted on square floor plates with pre-drilled fixing holes for fixing to the floor. fixings

not supplied
The corner rail gives the option of a protective cage around equipment
Finish: Stove Enamel Yellow

Corner
Section SBR304

Single Rail SBR200
SBR104
Double Rail Single Rail Height 380mm Double Rail Height 750mm Triple Rail Height 1120mm
Rail Length
Weight Model Weight Model Weight Model
1220mm2 7 kg SBR104 58 kg SBR204 84 kg SBR304
1830mm4 1 kg SBR106 76 kg SBR206 111 kg SBR306
SBR204 2440mm5 0 kg SBR108 94 kg SBR208 129 kg SBR308
Corner Section
1m x 1m 50 kg SBR100 94 kg SBR200 136 kg SBR300
COMManDeR - DROPDOWn FRaMe POSt

The rails on this protective barrier system are easy to remove allowing cost efficient access to machinery
Posts are constructed from 80mm heavy duty square tubular Steel, & the rails from 100 x 50mm tubular Steel
Mounted on square floor plates which are pre-drilled for fixing to the floor, fixings not supplied
Finish: Stove enamel Yellow

SBLR04 &
2 x SBLP11

4 x SBLR04 &
2 x SBLP21 &
1 x SBLP22

Weight
Rail Length Model Single Rail - 500mm High Double Rail - 1100mm High
kg Description
1220 mm 9 SBLR04 Weight kg Model Weight kg Model
1830 mm 13 SBLR06 End Post5 .5 SBLP11 10 SBLP21
2440 mm 17.5 SBLR08 Corner Post6 SBLP12 10.5 SBLP22
3000 mm 21.5 SBLR10 In Line Post6 SBLP13 10.5 SBLP23
COMManDeR - DROPDOWn FRaMe POSt
These units provide isolation for drums & machinery offering protection to products & operators
Manufactured from rectangular hollow section Steel these units can be bolted together in a line or at right angles
Pre-drilled base plates for fixing to the floor with
12mm bolts, not provided

Extension units are supplied with 2 joining bolts
Finished in a stoved enamel safety Yellow

Standard Unit
Extension Unit
Length Height
Description Model
mm mm
Standard 1000 1000 SB1000
Extension 1000 1000 SE1000
Standard 1500 1000 SB1500
Extension 1500 1000 SE1500
239
(For more information, visit www.loc8.ae or call toll free 800-LOC8 (5628
