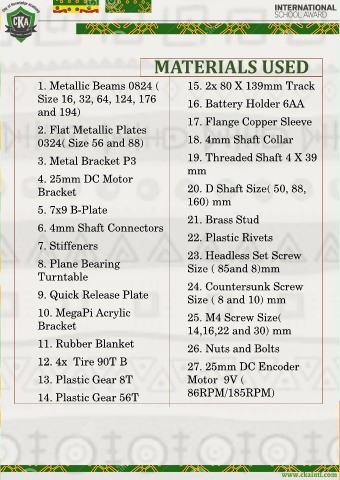

MATERIALS USED

1. Metallic Beams 0824 ( 15. 2x 80 X 139mm Track

Size 16, 32, 64, 124, 176 16. Battery Holder 6AA

and 194)
17. Flange Copper Sleeve
2. Flat Metallic Plates

0324( Size 56 and 88) 18. 4mm Shaft Collar

3. Metal Bracket P3 19. Threaded Shaft 4 X 39
mm
4. 25mm DC Motor
Bracket 20. D Shaft Size( 50, 88,
160) mm
5. 7x9 B-Plate
21. Brass Stud
6. 4mm Shaft Connectors
22. Plastic Rivets
7. Stiffeners
23. Headless Set Screw
8. Plane Bearing Size ( 85and 8)mm

Turntable
24. Countersunk Screw
9. Quick Release Plate Size ( 8 and 10) mm

10. MegaPi Acrylic 25. M4 Screw Size(

Bracket 14,16,22 and 30) mm

11. Rubber Blanket 26. Nuts and Bolts

12. 4x Tire 90T B 27. 25mm DC Encoder

13. Plastic Gear 8T Motor 9V (

14. Plastic Gear 56T 86RPM/185RPM)
