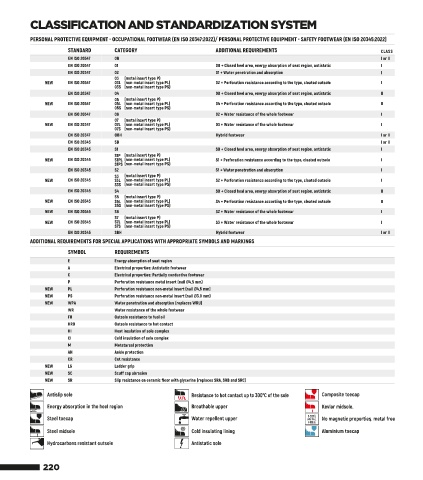

CLASSIFICATION AND STANDARDIZATION SYSTEM

PERSONAL PROTECTIVE EQUIPMENT OCCUPATIONAL FOOTWEAR (EN ISO 20347:2022)/ PERSONAL PROTECTIVE EQUIPMENT SAFETY FOOTWEAR (EN ISO 20345:2022)
STANDARD CATEGORY ADDITIONAL REQUIREMENTS CLASS
EN ISO 20347 0B I or II
EN ISO 20347 01 0B + Closed heel area, energy absorption of seat region, antistatic I
EN ISO 20347 02 01 + Water penetration and absorption I
03 (metal insert type P)
NEW EN ISO 20347 03L (non-metal insert type PL) 02 + Perforation resistance according to the type, cleated outsole I
03S (non-metal insert type PS)
EN ISO 20347 04 0B + Closed heel area, energy absorption of seat region, antistatic II
05 (metal insert type P)
NEW EN ISO 20347 05L (non-metal insert type PL) 04 + Perforation resistance according to the type, cleated outsole II
05S (non-metal insert type PS)
EN ISO 20347 06 02 + Water resistance of the whole footwear I
07 (metal insert type P)
NEW EN ISO 20347 07L (non-metal insert type PL) 03 + Water resistance of the whole footwear I
07S (non-metal insert type PS)
EN ISO 20347 •BH Hybrid footwear I or II
EN ISO 20345 SB I or II
EN ISO 20345 S1 SB + Closed heel area, energy absorption of seat region, antistatic I
S1P (metal insert type P)
NEW EN ISO 20345 S1PL (non-metal insert type PL) S1 + Perforation resistance according to the type, cleated outsole I
S1PS (non-metal insert type PS)
EN ISO 20345 S2 S1 + Water penetration and absorption I
S3 (metal insert type P)
NEW EN ISO 20345 S3L (non-metal insert type PL) S2 + Perforation resistance according to the type, cleated outsole I
S3S (non-metal insert type PS)
EN ISO 20345 S4 SB + Closed heal area, energy absorption of seat region, antistatic II
S5 (metal insert type P)
NEW EN ISO 20345 S5L (non-metal insert type PL) S4 + Perforation resistance according to the type, cleated outsole II
S5S (non-metal insert type PS)
NEW EN ISO 20345 S6 S2 + Water resistance of the whole footwear I
S7 (metal insert type P)
NEW EN ISO 20345 S7L (non-metal insert type PL) S3 + Water resistance of the whole footwear I
S7S (non-metal insert type PS)
EN ISO 20345 SBH Hybrid footwear I or II
ADDITIONAL REQUIREMENTS FOR SPECIAL APPLICATIONS WITH APPROPRIATE SYMBOLS AND MARKINGS
SYMBOL REQUIREMENTS
E Energy absorption of seat region
A Electrical properties: Antistatic footwear
C Electrical properties: Partially conductive footwear
P Perforation resistance metal insert (nail Ø4,5 mm)
NEW PL Perforation resistance non-metal insert (nail Ø4,5 mm)
NEW PS Perforation resistance non-metal insert (nail Ø3.0 mm)
NEW WPA Water penetration and absorption (replaces WRU)
WR Water resistance of the whole footwear
FO Outsole resistance to fuel oil
HRO Outsole resistance to hot contact
HI Heat insulation of sole complex
CI Cold insulation of sole complex
M Metatarsal protection
AN Ankle protection
CR Cut resistance
NEW LG Ladder grip
NEW SC Scuff cap abrasion
NEW SR Slip resistance on ceramic floor with glycerine (replaces SRA, SRB and SRC)
Antislip sole Resistance to hot contact up to 300°C of the sole Composite toecap
Energy absorption in the heel region Breathable upper Kevlar midsole.

Steel toecap Water repellent upper No magnetic properties metal free
Steel midsole Cold insulating lining Aluminium toecap
Hydrocarbons resistant outsole Antistatic sole
