Page 342 - Katalog_Stenso_Online_Germany_2023_Neat

EN

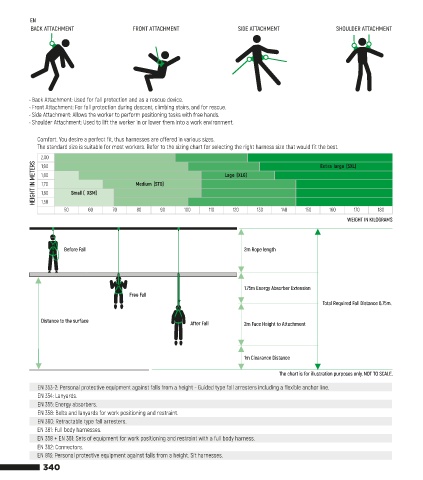

BACK ATTACHMENT FRONT ATTACHMENT SIDE ATTACHMENT SHOULDER ATTACHMENT

• Back Attachment: Used for fall protection and as a rescue device.
• Front Attachment: For fall protection during descent, climbing stairs, and for rescue.
• Side Attachment: Allows the worker to perform positioning tasks with free hands.
• Shoulder Attachment: Used to lift the worker in or lower them into a work environment.

Comfort. You desire a perfect fit, thus harnesses are offered in various sizes.
The standard size is suitable for most workers. Refer to the sizing chart for selecting the right harness size that would fit the best.
2,00 Extra large (SXL)
HEIGHT IN METERS 1,80 Small ( XSM) Medium (STD) Lage (XLG)
1,90

1,70
1,60
1,50
50 60 70 80 90 100 110 120 130 140 150 160 170 180
WEIGHT IN KILOGRAMS

Before Fall 2m Rope length

1.75m Energy Absorber Extension
Free Fall
Total Required Fall Distance 6.75m.

Distance to the surface After Fall 2m Face Height to Attachment

1m Clearance Distance

The chart is for illustration purposes only. NOT TO SCALE.
EN 353-2: Personal protective equipment against falls from a height - Guided type fall arresters including a flexible anchor line.
EN 354: Lanyards.
EN 355: Energy absorbers.
EN 358: Belts and lanyards for work positioning and restraint.
EN 360: Retractable type fall arresters.
EN 361: Full body harnesses.
EN 358 + EN 361: Sets of equipment for work positioning and restraint with a full body harness.
EN 362: Connectors.
EN 813: Personal protective equipment against falls from a height. Sit harnesses.
340
