Device Production

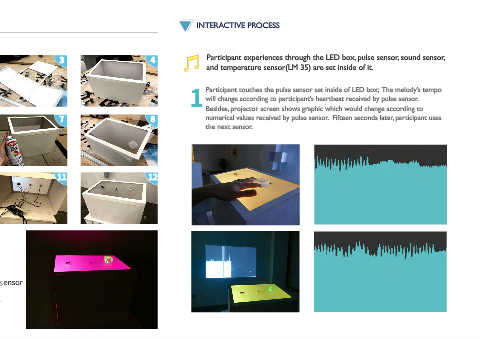

OUTCOME SIMULATION DIAGRAM DEVICE PRODUCTION INTERACTIVE PROCESS
LED box
Participant experiences through the LED box, pulse sensor, sound sensor,
1 2 3 4
and temperature sensor(LM 35) are set inside of it.
Participant touches the pulse sensor set inside of LED box; The melody’s tempo
1
will change according to participant’s heartbeat received by pulse sensor.
Besides, projector screen shows graphic which would change according to
numerical values received by pulse sensor. Fifteen seconds later, participant uses
5 6 7 8
the next sensor.
9 10 11 12
Pulse sensor
Temperature sensor
Sound sensor
