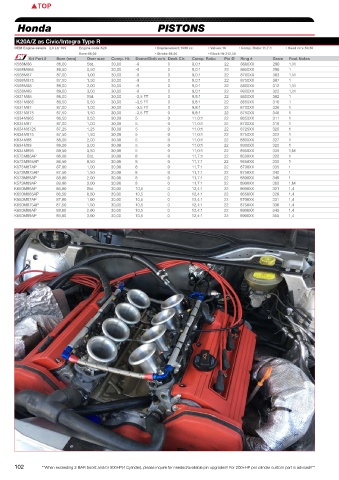

Honda PISTONS COMPLEMENTARY PARTS

K20A/Z as Civic/Integra Type R
OEM Engine details 2,0 Ltr 16V Engine code:K20 • Displacement:1998 cc • Valves:16 • Comp. Ratio:11,7:1 • Head cc’s:50,50 • Gasket thickness:0,63 • Rod Length:139,00
Bore:86,00 • Stroke:86,00 • Block Ht:212,00 HONDA
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K568M86 86,00 Std. 30,00 -9 0 9,0:1 22 8600XX 290 1,M W6600 015BW17139 / R-HON-010-I -
K568M865 86,50 0,50 30,00 -9 0 9,0:1 22 8650XX 298 1 W6295 015BW17139 / R-HON-010-I -
K568M87 87,00 1,00 30,00 -9 0 9,0:1 22 8700XX 303 1,M W6295 015BW17139 / R-HON-010-I -
K568M875 87,50 1,50 30,00 -9 0 9,0:1 22 8750XX 307 1 C4312-030 015BW17139 / R-HON-010-I -
K568M88 88,00 2,00 30,00 -9 0 9,0:1 22 8800XX 312 1,M C4312-030 015BW17139 / R-HON-010-I -
K568M89 89,00 3,00 30,00 -9 0 9,0:1 22 8900XX 322 1,M C4596-032 015BW17139 / R-HON-010-I -
K631M86 86,00 Std. 30,00 -3,5 FT 0 9,8:1 22 8600XX 302 1 W6600 015BW17139 / R-HON-011I -
K631M865 86,50 0,50 30,00 -3,5 FT 0 9,8:1 22 8650XX 316 1 W6295 015BW17139 / R-HON-011I -
K631M87 87,00 1,00 30,00 -3,5 FT 0 9,8:1 22 8700XX 336 1 W6295 015BW17139 / R-HON-011I -
K631M875 87,50 1,50 30,00 -3,5 FT 0 9,8:1 22 8750XX 346 1 C4312-030 015BW17139 / R-HON-011I -
K634M865 86,50 0,50 30,00 5 0 11,0:1 22 8650XX 311 1 W6295 015BW17139 / R-HON-010H -
K634M87 87,00 1,00 30,00 5 0 11,0:1 22 8700XX 316 1 W6295 015BW17139 / R-HON-010H -
K634M8725 87,25 1,25 30,00 5 0 11,0:1 22 8725XX 320 1 C4312-030 015BW17139 / R-HON-010H -
K634M875 87,50 1,50 30,00 5 0 11,0:1 22 8750XX 322 1 C4312-030 015BW17139 / R-HON-010H -
K634M88 88,00 2,00 30,00 5 0 11,0:1 22 8800XX 327 1 C4312-030 015BW17139 / R-HON-010H -
K634M89 89,00 3,00 30,00 5 0 11,0:1 22 8900XX 320 1 C4596-032 015BW17139 / R-HON-010H -
K634M895 89,50 3,50 30,00 5 0 11,0:1 22 8950XX 335 1,M - 015BW17139 / R-HON-010H -
K573M86AP 86,00 Std. 30,00 8 0 11,7:1 22 8600XX 320 1 W6600 015BW17139 / R-HON-010H -
K573M865AP 86,50 0,50 30,00 8 0 11,7:1 22 8650XX 330 1 W6295 015BW17139 / R-HON-010H -
K573M87AP 87,00 1,00 30,00 8 0 11,7:1 22 8700XX 335 1 W6295 015BW17139 / R-HON-010H -
K573M875AP 87,50 1,50 30,00 8 0 11,7:1 22 8750XX 342 1 C4312-030 015BW17139 / R-HON-010H -
K573M88AP 88,00 2,00 30,00 8 0 11,7:1 22 8800XX 348 1 C4312-030 015BW17139 / R-HON-010H -
K573M89AP 89,00 3,00 30,00 8 0 11,7:1 22 8900XX 360 1,M C4596-032 015BW17139 / R-HON-010H -
K650M86AP 86,00 Std. 30,00 10,5 0 12,4:1 22 8600XX 321 1,4 C4300-030 015BW17139L / R-HON-010HL -
K650M865AP 86,50 0,50 30,00 10,5 0 12,4:1 22 8650XX 326 1,4 W6295 015BW17139L / R-HON-010HL -
K650M87AP 87,00 1,00 30,00 10,5 0 12,4:1 22 8700XX 331 1,4 W6295 015BW17139L / R-HON-010HL -
K650M875AP 87,50 1,50 30,00 10,5 0 12,4:1 22 8750XX 336 1,4 C4312-030 015BW17139L / R-HON-010HL -
K650M88AP 88,00 2,00 30,00 10,5 0 12,4:1 22 8800XX 343 1,4 C4312-030 015BW17139L / R-HON-010HL -
K650M89AP 89,00 3,00 30,00 10,5 0 12,4:1 22 8900XX 355 1,4 C4596-032 015BW17139L / R-HON-010HL -

102 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 103
