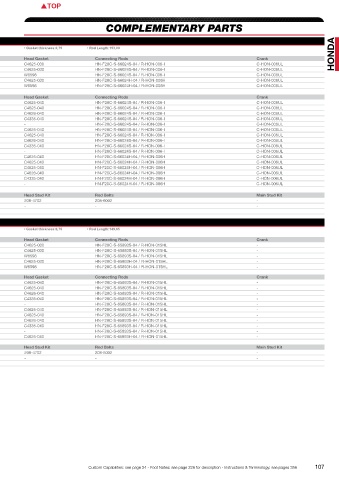

Honda PISTONS COMPLEMENTARY PARTS

F20C as in S2000
OEM Engine details 2,0 Ltr 16V Engine code:F20C • Displacement:1997 cc • Valves:16 • Comp. Ratio:11,0:1 • Head cc’s:52,50 • Gasket thickness:0,75 • Rod Length:153,00
Bore:87,00 • Stroke:84,00 • Block Ht:224,00 HONDA
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K632M87 87,00 Std. 28,98 -10 0,02- 8,5:1 23 8700XX 302 1,2,F,M,N C4625-030 HN-F20C-S-66024S-04 / R-HON-006-I C-HON-006UL
K632M875 87,50 0,50 28,98 -10 0,02- 8,5:1 23 8750XX 307 1,2,F,M,N C4625-030 HN-F20C-S-66024S-04 / R-HON-006-I C-HON-006UL
K632M89 89,00 2,00 28,98 -10 0,02- 8,5:1 23 8900XX 326 1,2,M,N W6598 HN-F20C-S-66024S-04 / R-HON-006-I C-HON-006UL
K682M875AP 87,50 0,50 28,98 7 0,02- 11,0:1 23 8750XX 330 1,2,N C4625-030 HN-F20C-S-66024H-04 / R-HON-006H C-HON-006UL
K682M89AP 89,00 2,00 28,98 7 0,02- 11,0:1 23 8900XX - 1,2,N W6598 HN-F20C-S-66024H-04 / R-HON-006H C-HON-006UL

Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
296910 87,00 Std. 30,00 -15,4 1,00 8,5:1 23 JG1004-3425 300 M,PS,S,N,T C4625-040 HN-F20C-S-66024S-04 / R-HON-006-I C-HON-006UL
296911 87,50 0,50 30,00 -16,1 1,00 8,5:1 23 JG1004-3445 305 M,PS,S,N,T C4625-040 HN-F20C-S-66024S-04 / R-HON-006-I C-HON-006UL
317754 88,00 1,00 30,00 -16,9 1,00 8,5:1 23 JG1004-3465 311 N,PS,S,T C4626-040 HN-F20C-S-66024S-04 / R-HON-006-I C-HON-006UL
317755 89,00 2,00 30,00 -18,4 1,00 8,5:1 23 JG1004-3504 314 N,PS,S,T C4335-040 HN-F20C-S-66024S-04 / R-HON-006-I C-HON-006UL
317756 90,00 3,00 30,00 -20 1,00 8,5:1 23 JG1004-3543 333 N,PS,S,T - HN-F20C-S-66024S-04 / R-HON-006-I C-HON-006UL
296908 87,00 Std. 30,00 -10,3 1,00 9,0:1 23 JG1004-3425 304 PS,S,N,T C4625-040 HN-F20C-S-66024S-04 / R-HON-006-I C-HON-006UL
296909 87,50 0,50 30,00 -11 1,00 9,0:1 23 JG1004-3445 306 PS,S,N,T C4625-040 HN-F20C-S-66024S-04 / R-HON-006-I C-HON-006UL
317750 88,00 1,00 30,00 -11,8 1,00 9,0:1 23 JG1004-3465 312 N,PS,S,T C4626-040 HN-F20C-S-66024S-04 / R-HON-006-I C-HON-006UL
317751 89,00 2,00 30,00 -13,2 1,00 9,0:1 23 JG1004-3504 318 N,PS,S,T C4335-040 HN-F20C-S-66024S-04 / R-HON-006-I C-HON-006UL
317752 90,00 3,00 30,00 -14,6 1,00 9,0:1 23 JG1004-3543 324 N,PS,S,T - HN-F20C-S-66024S-04 / R-HON-006-I C-HON-006UL
252607 87,00 Std. 30,00 5,5 1,00 11,5:1 23 JG1004-3425 320 N,PS,R,V C4625-040 HN-F20C-S-66024H-04 / R-HON-006H C-HON-006UL
361361 87,00 Std. 30,00 8,9 1,00 12,6:1 23 JG1004-3425 - M,PS,S C4625-040 HN-F20C-S-66024H-04 / R-HON-006H C-HON-006UL
361362 87,50 0,50 30,00 8,4 1,00 12,6:1 23 JG1004-3445 - M,PS,S C4625-040 HN-F20C-S-66024H-04 / R-HON-006H C-HON-006UL
361363 88,00 1,00 30,00 7,9 1,00 12,6:1 23 JG1004-3465 - M,PS,S C4626-040 HN-F20C-S-66024H-04 / R-HON-006H C-HON-006UL
361364 89,00 2,00 30,00 7,0 1,00 12,6:1 23 JG1004-3504 - M,PS,S C4335-040 HN-F20C-S-66024H-04 / R-HON-006H C-HON-006UL
361365 90,00 3,00 30,00 6,0 1,00 12,6:1 23 JG1004-3543 - M,PS,S - HN-F20C-S-66024H-04 / R-HON-006H C-HON-006UL
* If using OEM connecting rod, pins must be DLC coated, or rod must be bushed.
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1912H(HX/0,025/0,25) 5M1913H(HX/0,025/0,25) - 208-4702 208-6002 -
4B1912HD(HDX/0,025/0,25) (w/ Dowel Hole) - - - - -
KING CR4033XP MB5673XP TW 140AM
F22C as in S2000
OEM Engine details 2,2 Ltr 16V Engine code:F22C • Displacement:2156 cc • Valves:16 • Comp. Ratio:11,0:1 • Head cc’s:52,50 • Gasket thickness:0,75 • Rod Length:149,65
Bore:87,00 • Stroke:90,75 • Block Ht:224,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K632M87 87,00 Std. 28,98 -10 0,02- 9,0:1 23 8700XX 302 1,2,F,M,N C4625-030 HN-F20C-S-65893S-04 / R-HON-015HL -
K632M875 87,50 0,50 28,98 -10 0,02- 9,0:1 23 8750XX 307 1,2,F,M,N C4625-030 HN-F20C-S-65893S-04 / R-HON-015HL -
K632M89 89,00 2,00 28,98 -10 0,02- 9,0:1 23 8900XX 326 1,2,M,N W6598 HN-F20C-S-65893S-04 / R-HON-015HL -
K682M875AP 87,50 0,50 28,98 7 0,02- 12,0:1 23 8750XX 330 1,2,N C4625-030 HN-F20C-S-65893H-04 / R-HON-015HL -
K682M89AP 89,00 2,00 28,98 7 0,02- 12,0:1 23 8900XX - 1,2,N W6598 HN-F20C-S-65893H-04 / R-HON-015HL -
J Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
296910 87,00 Std. 30,00 -15,4 1,00 9,0:1 23 JG1004-3425 300 M,PS,S,N,T C4625-040 HN-F20C-S-65893S-04 / R-HON-015HL -
296911 87,50 0,50 30,00 -16,1 1,00 9,0:1 23 JG1004-3445 305 M,PS,S,N,T C4625-040 HN-F20C-S-65893S-04 / R-HON-015HL -
317754 88,00 1,00 30,00 -16,9 1,00 9,0:1 23 JG1004-3465 311 N,PS,S,T C4626-040 HN-F20C-S-65893S-04 / R-HON-015HL -
317755 89,00 2,00 30,00 -18,4 1,00 9,0:1 23 JG1004-3504 314 N,PS,S,T C4335-040 HN-F20C-S-65893S-04 / R-HON-015HL -
317756 90,00 3,00 30,00 -20 1,00 9,0:1 23 JG1004-3543 333 N,PS,S,T - HN-F20C-S-65893S-04 / R-HON-015HL -
296908 87,00 Std. 30,00 -10,3 1,00 9,65:1 23 JG1004-3425 304 PS,S,N,T C4625-040 HN-F20C-S-65893S-04 / R-HON-015HL -
296909 87,50 0,50 30,00 -11 1,00 9,65:1 23 JG1004-3445 306 PS,S,N,T C4625-040 HN-F20C-S-65893S-04 / R-HON-015HL -
317750 88,00 1,00 30,00 -11,8 1,00 9,65:1 23 JG1004-3465 312 N,PS,S,T C4626-040 HN-F20C-S-65893S-04 / R-HON-015HL -
317751 89,00 2,00 30,00 -13,2 1,00 9,65:1 23 JG1004-3504 318 N,PS,S,T C4335-040 HN-F20C-S-65893S-04 / R-HON-015HL -
317752 90,00 3,00 30,00 -14,6 1,00 9,65:1 23 JG1004-3543 324 N,PS,S,T - HN-F20C-S-65893S-04 / R-HON-015HL -
252607 87,00 Std. 30,00 5,5 1,00 12,5:1 23 JG1004-3425 320 N,PS,R,V C4625-040 HN-F20C-S-65893H-04 / R-HON-015HL -
* If using OEM connecting rod, pins must be DLC coated, or rod must be bushed.
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1912H(HX/0,025/0,25) 5M1913H(HX/0,025/0,25) - 208-4702 208-6002 -
4B1912HD(HDX/0,025/0,25) (w/ Dowel Hole) - - - - -
KING CR4033XP MB5673XP TW 140AM

106 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 107
