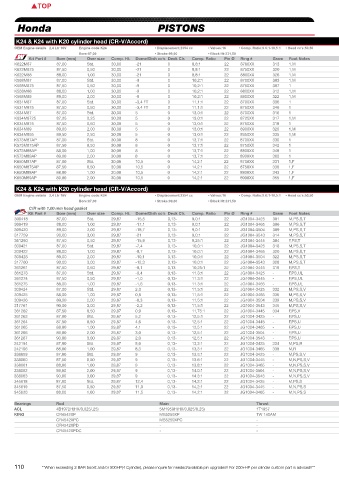

Honda PISTONS COMPLEMENTARY PARTS
K24 & K24 with K20 cylinder head (CR-V/Accord)
OEM Engine details 2,4 Ltr 16V Engine code:K24 • Displacement:2354 cc • Valves:16 • Comp. Ratio:9.6:1-10,5:1 • Head cc’s:50,50 • Gasket thickness:0,63 • Rod Length:152,00
Bore:87,00 • Stroke:99,00 • Block Ht:231,50 HONDA
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K622M87 87,00 Std. 30,00 -21 0 8,8:1 22 8700XX 313 1,M C4311-030 015BX17152 / HN5984-866 -
K622M875 87,50 0,50 30,00 -21 0 8,8:1 22 8750XX 320 1,M C4312-030 015BX17152 / HN5984-866 -
K622M88 88,00 1,00 30,00 -21 0 8,8:1 22 8800XX 326 1,M C4312-030 015BX17152 / HN5984-866 -
K568M87 87,00 Std. 30,00 -9 0 10,2:1 22 8700XX 303 1,M C4311-030 015BX17152 -
K568M875 87,50 0,50 30,00 -9 0 10,2:1 22 8750XX 307 1 C4312-030 015BX17152 -
K568M88 88,00 1,00 30,00 -9 0 10,2:1 22 8800XX 312 1,M C4312-030 015BX17152 -
K568M89 89,00 2,00 30,00 -9 0 10,2:1 22 8900XX 322 1,M C4311-030 015BX17152 -
K631M87 87,00 Std. 30,00 -3,4 FT 0 11,1:1 22 8700XX 336 1 C4311-030 015BX17152 -
K631M875 87,50 0,50 30,00 -3,4 FT 0 11,1:1 22 8750XX 346 1 C4312-030 015BX17152 -
K634M87 87,00 Std. 30,00 5 0 13,0:1 22 8700XX 316 1 C4311-030 015BX17152 -
K634M8725 87,25 0,25 30,00 5 0 13,0:1 22 8725XX 317 1,M C4312-030 015BX17152 -
K634M875 87,50 0,50 30,00 5 0 13,0:1 22 8750XX 318 1 C4312-030 015BX17152 -
K634M89 89,00 2,00 30,00 5 0 13,0:1 22 8900XX 320 1,M C4596-032 015BX17152 -
K634M895 89,50 2,50 30,00 5 0 13,0:1 22 8950XX 335 1,M H1912SP1030S 015BX17152 -
K573M87AP 87,00 Std. 30,00 8 0 13,7:1 22 8700XX 330 1 C4311-030 015BX17152 -
K573M875AP 87,50 0,50 30,00 8 0 13,7:1 22 8750XX 342 1 C4312-030 015BX17152 -
K573M88AP 88,00 1,00 30,00 8 0 13,7:1 22 8800XX 348 1 C4312-030 015BX17152 -
K573M89AP 89,00 2,00 30,00 8 0 13,7:1 22 8900XX 360 1 C4596-032 015BX17152 -
K650M87AP 87,00 Std. 30,00 10,5 0 14,2:1 22 8700XX 331 1,F C4311-030 015BX17152 -
K650M875AP 87,50 0,50 30,00 10,5 0 14,2:1 22 8750XX 336 1,F C4312-030 015BX17152 -
K650M88AP 88,00 1,00 30,00 10,5 0 14,2:1 22 8800XX 343 1,F C4312-030 015BX17152 -
K650M89AP 89,00 2,00 30,00 10,5 0 14,2:1 22 8900XX 355 1,F C4596-032 015BX17152 -
K24 & K24 with K20 cylinder head (CR-V/Accord)
OEM Engine details 2,4 Ltr 16V Engine code:K24 • Displacement:2354 cc • Valves:16 • Comp. Ratio:9.6:1-10,5:1 • Head cc’s:50,50 • Gasket thickness:0,63 • Rod Length:152,00
Bore:87,00 • Stroke:99,00 • Block Ht:231,50
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
309418 87,00 Std. 29,87 -15,5 0,13- 9,0:1 22 JG1004-3425 301 M,PS,S,T C4312-040 015BX17152 / HN5984-866 -
309419 88,00 1,00 29,87 -17,1 0,13- 9,0:1 22 JG1004-3465 306 M,PS,S,T C4312-040 015BX17152 / HN5984-866 -
309420 89,00 2,00 29,87 -18,7 0,13- 9,0:1 22 JG1004-3504 309 M,PS,S,T C4313-040 015BX17152 / HN5984-866 -
317759 90,00 3,00 29,87 -21 0,13- 9,0:1 22 JG1004-3543 314 M,PS,S,T H1912SP1030S 015BX17152 / HN5984-866 -
361260 87,50 0,50 29,87 -15,9 0,13- 9,25:1 22 JG1004-3445 304 F,PS,T C4312-040 015BX17152 -
309421 87,00 Std. 29,87 -7,4 0,13- 10,0:1 22 JG1004-3425 318 M,PS,S,T C4311-040 015BX17152 -
309422 88,00 1,00 29,87 -8,7 0,13- 10,0:1 22 JG1004-3465 320 M,PS,S,T C4312-040 015BX17152 -
309423 89,00 2,00 29,87 -10,1 0,13- 10,0:1 22 JG1004-3504 322 M,PS,S,T C4313-040 015BX17152 -
317760 90,00 3,00 29,87 -12,3 0,13- 10,0:1 22 JG1004-3543 328 M,PS,S,T H1912SP1030S 015BX17152 -
361261 87,50 0,50 29,87 -8,1 0,13 10,25:1 22 JG1004-3445 319 F,PS,T C4312-040 015BX17152 -
361273 87,00 Std. 29,87 -0,4 0,13- 11.3:1 22 JG1004-3425 - F,PS,UL C4311-040 015BX17152 -
361274 87,50 0,50 29,87 -1,0 0,13- 11.3:1 22 JG1004-3445 - F,PS,UL C4312-040 015BX17152 -
361275 88,00 1,00 29,87 -1,6 0,13- 11.3:1 22 JG1004-3465 - F,PS,UL C4312-040 015BX17152 -
309424 87,00 Std. 29,87 2,0 0,13- 11,5:1 22 JG1004-3425 332 M,PS,S,V C4311-040 015BX17152 -
309425 88,00 1,00 29,87 0,8 0,13- 11,5:1 22 JG1004-3465 336 M,PS,S,V C4312-040 015BX17152 -
309426 89,00 2,00 29,87 -0,3 0,13- 11,5:1 22 JG1004-3504 339 M,PS,S,V C4313-040 015BX17152 -
317761 90,00 3,00 29,87 -2,2 0,13- 11,5:1 22 JG1004-3543 345 M,PS,S,V H1912SP1030S 015BX17152 -
361262 87,50 0,50 29,87 0,9 0,13- 11,75:1 22 JG1004-3445 334 F,PS,V C4312-040 015BX17152 -
361263 87,00 Std. 29,87 5,2 0,13- 12,5:1 22 JG1004-3425 - F,PS,U C4312-040 015BX17152 -
361264 87,50 0,50 29,87 4,6 0,13- 12,5:1 22 JG1004-3445 - F,PS,U C4312-040 015BX17152 -
361265 88,00 1,00 29,87 4,1 0,13- 12,5:1 22 JG1004-3465 - F,PS,U C4312-040 015BX17152 -
361266 89,00 2,00 29,87 3,0 0,13- 12,5:1 22 JG1004-3504 - F,PS,U C4313-040 015BX17152 -
361267 90,00 3,00 29,87 2,0 0,13- 12,5:1 22 JG1004-3543 - F,PS,U H1912SP1030S 015BX17152 -
242194 87,00 Std. 29,87 8,6 0,13- 13,3:1 22 JG1004-3425 334 M,PS,R C4311-040 015BX17152 -
242196 88,00 1,00 29,87 8,3 0,13- 13,3:1 22 JG1004-3465 338 M,R C4311-040 015BX17152 -
338059 87,00 Std. 29,87 9 0,13- 13.5:1 22 JG1004-3425 - M,PS,S,V C4311-040 015BX17152 -
338060 87,50 0,50 29,87 9 0,13- 13.6:1 22 JG1004-3445 - M,N,PS,S,V C4312-040 015BX17152 -
338061 88,00 1,00 29,87 9 0,13- 13.8:1 22 JG1004-3465 - M,N,PS,S,V C4312-040 015BX17152 -
338062 89,00 2,00 29,87 9 0,13- 14.0:1 22 JG1004-3504 - M,N,PS,S,V C4313-040 015BX17152 -
338063 90,00 3,00 29,87 9 0,13- 14.3:1 22 JG1004-3543 - M,N,PS,S,V H1912SP1030S 015BX17152 -
345618 87,00 Std. 29,87 12,4 0,13- 14,2:1 22 JG1004-3425 - M,PS,S C4311-040 015BX17152 -
345619 87,50 0,50 29,87 11,9 0,13- 14,2:1 22 JG1004-3445 - M,N,PS,S C4312-040 015BX17152 -
345620 88,00 1,00 29,87 11,5 0,13- 14,2:1 22 JG1004-3465 - M,N,PS,S C4312-040 015BX17152 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1972H(HX/0,025/,25) 5M1959H(HX/0,025/0,25) 1T1957 208-4701 208-6003 -
KING CR4542XP MB5259XP TW 140AM
CR4542XPC MB5259XPC -
CR4542XPD - -
CR4542XPDC - -
110 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 111
