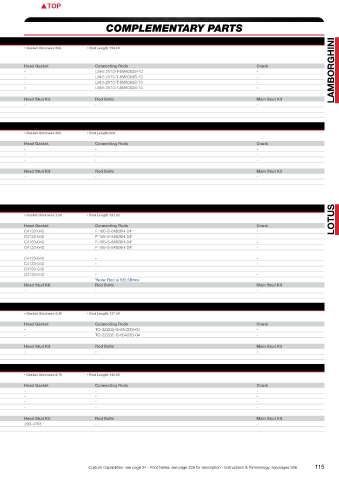

TOP TOP

Lamborghini PISTONS COMPLEMENTARY PARTS

5.2L Gallardo ‘09-12
OEM Engine details 5,2L 40V FSI(V10) Engine code:BUJ • Displacement:5204 cc • Valves:40 • Comp. Ratio:11,0:1 • Head cc’s:46,00 • Gasket thickness:N/A • Rod Length:154,00
Bore:84,50 • Stroke:92,80 • Block Ht:N/A
C/R with 1,75 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
308178 84,50 Std. 27,60 -14 - 9,0:1 20 XC8450 284 M,PS,Q,S,T - LM-5.2V10-T-8M6063S-10 - LAMBORGHINI
361280 85,00 0,50 27,60 -14,6 - 9,0:1 20 XC8500 - M,PS,Q,S,T - LM-5.2V10-T-8M6063S-10 -
361281 84,50 Std. 27,60 -3,7 - 10,5:1 20 XC8450 - M,PS,Q,S,T - LM-5.2V10-T-8M6063S-10 -
361282 85,00 0,50 27,60 -4,7 - 10,5:1 20 XC8500 - M,PS,Q,S,T - LM-5.2V10-T-8M6063S-10 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING CR 227XP (2pcs) MB1322XP (1pc) -
CR 227XPC (2pcs) MB1322XPC (1pc) -
Diablo
OEM Engine details 6,0L 48V(V12) Engine code:N/A • Displacement:5992 cc • Valves:48 • Comp. Ratio:10,7:1 • Head cc’s:N/A • Gasket thickness:N/A • Rod Length:N/A
Bore:87,00 • Stroke:84,00 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE215M87 87,00 Std. 27,66 -15 - 10,7:1 20 8700XX 265 F,M - - -
KE215M875 87,50 0,50 27,66 -15 - 10,7:1 20 8750XX 269 F,M - - -
KE215M88 88,00 1,00 27,66 -15 - 10,7:1 20 8800XX 273 F,M - - -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -

Lotus

1,6L 8V Twin Cam as in Elan 26
OEM Engine details 1,6 Ltr 8V Engine code:L-block • Displacement:1558 cc • Valves:8 • Comp. Ratio:9,5:1/10,3:1 • Head cc’s:36,70 • Gasket thickness:1,00 • Rod Length:121,92
Bore:82,55 • Stroke:72,75 • Block Ht:197,61 LOTUS
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
339325C-83 83,00 0,45 37,85 8,25 0,80- 11,2:1 20,63 JG1001-3268 - M,R C4133-040 F-105-S-64826H-04* -
339325C-835 83,50 0,95 37,85 8,25 0,80- 11,3:1 20,63 JG1001-3287 - M,R C4133-040 F-105-S-64826H-04* -
339325C 84,00 1,45 37,85 8,25 0,80- 11,4:1 20,63 JXC0F4-3307-2 362 M,R C4133-040 F-105-S-64826H-04* -
339325C-85 85,00 2,45 37,85 8,25 0,80- 11,6:1 20,63 JG1001-3346 - M,N,R C4133-040 F-105-S-64826H-04* -
C/R with 42,60cc head, and OE rod lenght
252098C-83 83,00 0,45 39,10 13,5 0,22- 11,7:1 20,63 JG1001-3268 - M,R C4133-040 - -
252098C-835 83,50 0,95 39,10 13,5 0,22- 12,0:1 20,63 JG1001-3287 - M,R C4133-040 - -
252098C 84,00 1,45 39,10 13,5 0,22- 12,2:1 20,63 JG1001-3307 369 M,R C4133-040 - -
252098C-85 85,00 2,45 39,10 13,5 0,22- 12,4:1 20,63 JG1001-3346 - M,N,R C4133-040 - -
*Note: Rod is 122,58mm
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B603H(HX/0,01/0,10/0,20) 5M2152H(HX/0,01/0,10/0,20) - - - -
KING - - -
2ZZ-GE as in Elise/Exige (Toyota engine)
OEM Engine details 1,8 Ltr 16V Engine code:2ZZ-GE • Displacement:1794 cc • Valves:16 • Comp. Ratio:10,0:1 • Head cc’s:38,00 • Gasket thickness:0,50 • Rod Length:137,90
Bore:82,00 • Stroke:85,00 • Block Ht:211,75
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K565M82 82,00 Std. 31,20 -16 0,15- 8,8:1 20 8200XX 284 1 - TO-2ZZGE-S-65433S-04 -
K569M82 82,00 Std. 31,20 0,2 0,15- 11,9:1 20 8200XX 319 1 - TO-2ZZGE-S-65433S-04 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING CR4608XP MB5375XP TW 185AM
2ZR-FE as in Elise
OEM Engine details 1,8 Ltr 16V Engine code:2ZR-FE • Displacement:1798 cc • Valves:16 • Comp. Ratio:10,0:1 • Head cc’s:N/A • Gasket thickness:0,70 • Rod Length:146,65
Bore:80,50 • Stroke:88,30 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE264M805 80,50 Std. 28,27 -10,1 - 10,0:1 20 3169XC 263 M,R - - -
KE264M81 81,00 0,50 28,27 -10,1 - 10,0:1 20 8100XX 267 M,R - - -
KE265M805 80,50 Std. 28,27 -1,1 - 12,0:1 20 3169XC 278 M,R - - -
KE265M81 81,00 0,50 28,27 -1,1 - 12,0:1 20 8100XX 282 M,R - - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 203-4703 - -
KING - - -

114 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 115
