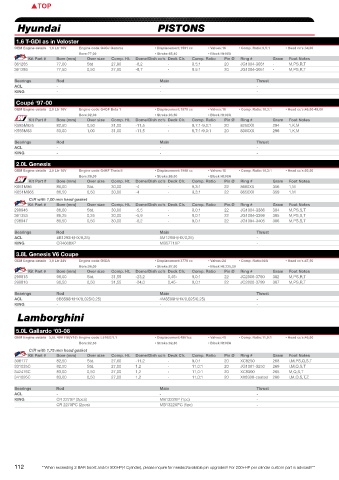

Hyundai PISTONS COMPLEMENTARY PARTS
1.6 T-GDI as in Veloster
OEM Engine details 1,6 Ltr 16V Engine code:G4GJ Gamma • Displacement:1591 cc • Valves:16 • Comp. Ratio:9,5:1 • Head cc’s:34,00 • Gasket thickness:0,50 • Rod Length:N/A
Bore:77,00 • Stroke:85,40 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank HYUNDAI
361285 77,00 Std 27,90 -8,2 - 9.5:1 20 JG1004-3031 - M,PS,R,T - - -
361286 77,50 0,50 27,90 -8,7 - 9.5:1 20 JG1004-3051 - M,PS,R,T - - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
Coupé ‘97-00
OEM Engine details 2,0 Ltr 16V Engine code:G4GF Beta 1 • Displacement:1975 cc • Valves:16 • Comp. Ratio:10,3:1 • Head cc’s:46,00-49,00 • Gasket thickness:0,71 • Rod Length:146,10
Bore:82,00 • Stroke:93,50 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K585M825 82,50 0,50 31,00 -11,5 - 8,7:1-9,0:1 20 8250XX 294 1,K,M - - -
K585M83 83,00 1,00 31,00 -11,5 - 8,7:1-9,0:1 20 8300XX 296 1,K,M - - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
2.0L Genesis
OEM Engine details 2,0 Ltr 16V Engine code:G4KF Theta II • Displacement:1998 cc • Valves:16 • Comp. Ratio:10,3:1 • Head cc’s:50,50 • Gasket thickness:0,66 • Rod Length:146,00
Bore:86,00 • Stroke:86,00 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K651M86 86,00 Std. 30,00 -4 - 9,3:1 22 8600XX 356 1,M C4953-032 016CA17146 -
K651M865 86,50 0,50 30,00 -4 - 9,3:1 22 8650XX 359 1,M C4953-032 016CA17146 -
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
298946 86,00 Std. 30,00 -5,5 - 9,0:1 22 JG1004-3386 304 M,PS,S,T C4953-032 016CA17146 -
361353 86,25 0,25 30,00 -5,9 - 9,0:1 22 JG1004-3396 305 M,PS,S,T C4953-032 016CA17146 -
298947 86,50 0,50 30,00 -6,2 - 9,0:1 22 JG1004-3405 306 M,PS,S,T C4953-032 016CA17146 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1293H(HX/0,25) 5M1295H(HX/0,25) - - - -
KING CR4668XP MB5771XP -
3.8L Genesis V6 Coupe
OEM Engine details 3,8 Ltr 24V Engine code:G6DA • Displacement:3778 cc • Valves:24 • Comp. Ratio:N/A • Head cc’s:47,50 • Gasket thickness:N/A • Rod Length:149,50
Bore:96,00 • Stroke:87,00 • Block Ht:225,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
299815 96,00 Std. 31,55 -23,2 0,45- 9,0:1 22 JC2806-3780 382 M,PS,R,T - HYH5886BPGB6-A -
299816 96,50 0,50 31,55 -24,0 0,45- 9,0:1 22 JC2806-3799 387 M,PS,R,T - HYH5886BPGB6-A -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 6B8598H(HX/0,025/0,25) 4M8599H(HX/0,025/0,25) - - - -
KING - - -
Lamborghini
5.0L Gallardo ‘03-08
OEM Engine details 5,0L 40V FSI(V10) Engine code:L510/07L1 • Displacement:4961cc • Valves:40 • Comp. Ratio:11,0:1 • Head cc’s:46,00 • Gasket thickness:N/A • Rod Length:154,38
Bore:82,50 • Stroke:92,80 • Block Ht:N/A
C/R with 1,75 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
308177 82,50 Std. 27,60 -11,2 - 9,0:1 20 XC8250 268 I,M,PS,Q,S,T - LM-V10-1-T-8M6078S-10 - LAMBORGHINI
331035C 82,50 Std. 27,00 1,2 - 11,0:1 20 JG1001-3250 269 I,M,Q,S,T - LM-V10-1-T-8M6078S-10 -
342476C 83,00 0,50 27,00 1,2 - 11,0:1 20 XC8300 265 M,Q,S,T - LM-V10-1-T-8M6078S-10 -
341695C 83,00 0,50 27,00 1,2 - 11,0:1 20 XX8300-coated 280 I,M,Q,S,T,Z - LM-V10-1-T-8M6078S-10 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING CR 227XP (2pcs) MB1322XP (1pc) -
CR 227XPC (2pcs) MB1322XPC (1pc) -
112 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 113
