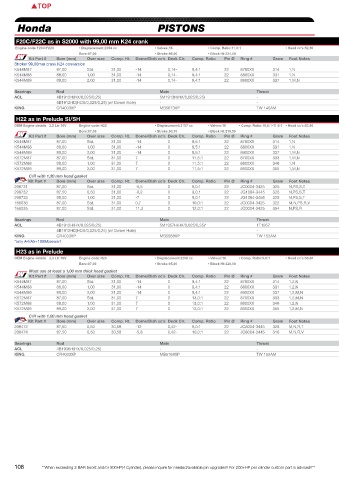

Honda PISTONS COMPLEMENTARY PARTS

F20C/F22C as in S2000 with 99,00 mm K24 crank
Engine code:F20C/F22C • Displacement:2354 cc • Valves:16 • Comp. Ratio:11,0:1 • Head cc’s:52,50 • Gasket thickness:0,76 • Rod Length:143,40
Bore:87,00 • Stroke:99,00 • Block Ht:224,00 HONDA
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
Stroker 99,00mm crank K24 conversion
K544M87 87,00 Std. 31,00 -14 0,14- 9,4:1 22 8700XX 314 1,N C4625-040 015BX17143 -
K544M88 88,00 1,00 31,00 -14 0,14- 9,4:1 22 8800XX 331 1,N C4626-040 015BX17143 -
K544M89 89,00 2,00 31,00 -14 0,14- 9,4:1 22 8900XX 337 1,M,N W6598 015BX17143 -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1912H(HX/0,025/0,25) 5M1913H(HX/0,025/0,25) - 208-4702 208-6002 -
4B1912HD(HDX/0,025/0,25) (w/ Dowel Hole) - - - - -
KING CR4033XP MB5673XP TW 140AM
H22 as in Prelude SI/SH
OEM Engine details 2,2 Ltr 16V Engine code:H22 • Displacement:2157 cc • Valves:16 • Comp. Ratio:10,6:1-11,0:1 • Head cc’s:53,80 • Gasket thickness:0,71 • Rod Length:143,15
Bore:87,00 • Stroke:90,70 • Block Ht:219,50
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K544M87 87,00 Std. 31,00 -14 0 8,5:1 22 8700XX 314 1,N C4255-030 015BV17143 / R-HON-008H -
K544M88 88,00 1,00 31,00 -14 0 8,5:1 22 8800XX 331 1,N W6088 015BV17143 / R-HON-008H -
K544M89 89,00 2,00 31,00 -14 0 8,5:1 22 8900XX 337 1,M,N W6412 015BV17143 / R-HON-008H -
K572M87 87,00 Std. 31,00 7 0 11,5:1 22 8700XX 333 1,M,N C4255-030 015BV17143 / R-HON-008H -
K572M88 88,00 1,00 31,00 7 0 11,5:1 22 8800XX 346 1,N W6088 015BV17143 / R-HON-008H -
K572M89 89,00 2,00 31,00 7 0 11,5:1 22 8900XX 355 1,M,N W6412 015BV17143 / R-HON-008H -
C/R with 1,30 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
298731 87,00 Std. 31,00 -5,5 0 9,0:1 22 JC0004-3425 325 N,PS,S,T C4255-040 015BV17143 / R-HON-008H -
298732 87,50 0,50 31,00 -6,2 0 9,0:1 22 JG1004-3445 325 N,PS,S,T C4198-040 015BV17143 / R-HON-008H -
298733 88,00 1,00 31,00 -7 0 9,0:1 22 JG1004-3465 325 N,PS,S,T C4198-040 015BV17143 / R-HON-008H -
166036 87,00 Std. 31,00 0,7 0 10,0:1 22 JC0004-3425 322 M,N,PS,R,V C4255-040 015BV17143 / R-HON-008H -
166035 87,00 Std. 31,00 11,3 0 12,0:1 22 JC0004-3425 354 N,PS,R C4255-040 015BV17143 / R-HON-008H -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1912H(HX/0,025/0,25) 5M1957H(HX/0,025/0,25)* 1T1957 208-4307 - 208-5401
4B1912HD(HDX/0,025/0,25) (w/ Dowel Hole) - - - - -
KING CR4033XP MB5568XP TW 152AM
*only A4/A5+1998&newer!
H23 as in Prelude
OEM Engine details 2,3 Ltr 16V Engine code:H23 • Displacement:2258 cc • Valves:16 • Comp. Ratio:9,8:1 • Head cc’s:50,00 • Gasket thickness:0,71 • Rod Length:141,50
Bore:87,00 • Stroke:95,00 • Block Ht:220,00
Must use at least a 1,00 mm thick head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K544M87 87,00 Std. 31,00 -14 0 9,4:1 22 8700XX 314 1,2,N C4553-040 HN-H23-S-65581S-04 -
K544M88 88,00 1,00 31,00 -14 0 9,4:1 22 8800XX 331 1,2,N C4554-040 HN-H23-S-65581S-04 -
K544M89 89,00 2,00 31,00 -14 0 9,4:1 22 8900XX 337 1,2,M,N C4555-040 HN-H23-S-65581S-04 -
K572M87 87,00 Std. 31,00 7 0 13,0:1 22 8700XX 333 1,2,M,N C4553-040 HN-H23-S-65581H-04 -
K572M88 88,00 1,00 31,00 7 0 13,0:1 22 8800XX 346 1,2,N C4554-040 HN-H23-S-65581H-04 -
K572M89 89,00 2,00 31,00 7 0 13,0:1 22 8900XX 355 1,2,M,N C4555-040 HN-H23-S-65581H-04 -
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
208472 87,50 0,50 30,58 -12 0,42- 9,0:1 22 JC8004-3445 328 M,N,R,T C4553-040 HN-H23-S-65581S-04 -
208474 87,50 0,50 30,58 -5,8 0,42- 10,0:1 22 JC8004-3445 316 M,N,R,V C4553-040 HN-H23-S-65581H-04 -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1936H(HX/0,025/0,25) - - 208-4307 - 208-5401
KING CR4033XP MB5168XP TW 152AM

108 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 109
