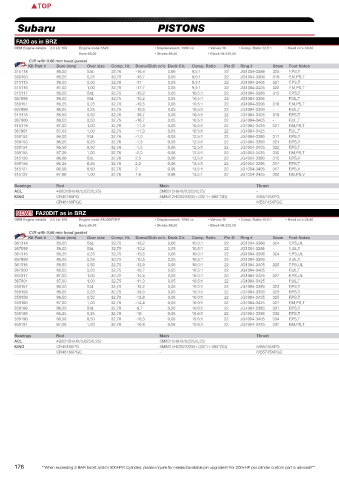

Subaru PISTONS COMPLEMENTARY PARTS

FA20 as in BRZ
OEM Engine details 2,0 Ltr 16V Engine code:FA20 • Displacement: 1998 cc • Valves:16 • Comp. Ratio:12,5:1 • Head cc’s:39,00 • Gasket thickness:0,50 • Rod Length:129,30
Bore:86,00 • Stroke:86,00 • Block Ht:205,00 SUBARU
C/R with 0,66 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
315114 86,00 Std. 32,76 -16,4 0,06 9,5:1 22 JG1004-3386 325 F,PS,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
359150 86,25 0,25 32,76 -16,7 0,06 9,5:1 22 JG1004-3396 319 F,M,PS,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
315115 86,50 0,50 32,76 -17 0,06 9,5:1 22 JG1004-3405 321 F,PS,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
315116 87,00 1,00 32,76 -17,7 0,06 9,5:1 22 JG1004-3425 322 F,M,PS,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
315117 86,00 Std. 32,76 -10,2 0,06 10,5:1 22 JG1004-3386 312 F,PS,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
367898 86,00 Std. 32,75 -10,2 0,05 10,5:1 22 JG1004-3386 - F,UL,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
359151 86,25 0,25 32,76 -10,5 0,06 10,5:1 22 JG1004-3396 318 F,M,PS,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
367899 86,25 0,25 32,75 -10,5 0,05 10,5:1 22 JG1004-3396 - F,UL,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
315118 86,50 0,50 32,76 -10,7 0,06 10,5:1 22 JG1004-3405 318 F,PS,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
367900 86,50 0,50 32,75 -10,7 0,05 10,5:1 22 JG1004-3405 - F,UL,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
315119 87,00 1,00 32,76 -11,3 0,06 10,5:1 22 JG1004-3425 321 F,M,PS,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
367901 87,00 1,00 32,75 -11,3 0,05 10,5:1 22 JG1004-3425 - F,UL,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
359152 86,00 Std. 32,76 -1,0 0,06 12,5:1 22 JG1004-3386 317 F,PS,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6W-04 -
359153 86,25 0,25 32,76 -1,3 0,06 12,5:1 22 JG1004-3396 321 F,PS,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6W-04 -
359154 86,50 0,50 32,76 -1,5 0,06 12,5:1 22 JG1004-3405 322 F,PS,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6W-04 -
359155 87,00 1,00 32,76 -2,0 0,06 12,5:1 22 JG1004-3425 330 F,M,PS,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6W-04 -
315120 86,00 Std. 32,76 2,5 0,06 13,5:1 22 JG1004-3386 315 F,PS,V C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6W-04 -
359156 86,25 0,25 32,76 2,2 0,06 13,5:1 22 JG1004-3396 317 F,PS,T C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6W-04 -
315121 86,50 0,50 32,76 2 0,06 13,5:1 22 JG1004-3405 317 F,PS,V C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6W-04 -
315122 87,00 1,00 32,76 1,6 0,06 13,5:1 22 JG1004-3425 322 F,M,PS,V C4589-032/C4588-032(Left/right) SB_AFA20_1HS_5090B6W-04 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B8310H(HX/0,025/0,25) 5M8312H(HX/0,025/0,25) - 260-4301 260-6303 -
KING CR4616XPG 5M8312HOS2/OS5(+.002”/+.005”OD) MB5745XPG
CR4616XPGC - MB5745XPGC
NEW!! FA20DIT as in BRZ
OEM Engine details 2,0 Ltr 16V Engine code:FA20DIT/E/F • Displacement: 1998 cc • Valves:16 • Comp. Ratio:10,0:1 • Head cc’s:38,60 • Gasket thickness:0,50 • Rod Length:129,30
Bore:86,00 • Stroke:86,00 • Block Ht:205,00
C/R with 0,66 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
361314 86,00 Std. 32,70 -13,2 0,06 10.0:1 22 JG1004-3386 324 F,PS,UL 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
367898 86,00 Std. 32,75 -10,2 0,05 10,5:1 22 JG1004-3386 - F,UL,T 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
361315 86,25 0,25 32,70 -13,5 0,06 10.0:1 22 JG1004-3396 324 F,PS,UL 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
367899 86,25 0,25 32,75 -10,5 0,05 10,5:1 22 JG1004-3396 - F,UL,T 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
361316 86,50 0,50 32,70 -13,8 0,06 10.0:1 22 JG1004-3405 325 F,PS,UL 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
367900 86,50 0,50 32,75 -10,7 0,05 10,5:1 22 JG1004-3405 - F,UL,T 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
361317 87,00 1,00 32,70 -14,4 0,06 10.0:1 22 JG1004-3425 327 F,PS,UL 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
367901 87,00 1,00 32,75 -11,3 0,05 10,5:1 22 JG1004-3425 - F,UL,T 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
359157 86,00 Std. 32,70 -13,2 0,06 10.0:1 22 JG1004-3386 323 F,PS,T 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
359158 86,25 0,25 32,70 -13,5 0,06 10.0:1 22 JG1004-3396 323 F,PS,T 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
359159 86,50 0,50 32,70 -13,8 0,06 10.0:1 22 JG1004-3405 325 F,PS,T 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
359160 87,00 1,00 32,70 -14,4 0,06 10.0:1 22 JG1004-3425 327 F,M,PS,T 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
359188 86,00 Std. 32,70 -9,7 0,06 10.6:1 22 JG1004-3386 331 F,PS,T 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
359189 86,25 0,25 32,70 -10 0,06 10.6:1 22 JG1004-3396 332 F,PS,T 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
359190 86,50 0,50 32,70 -10,3 0,06 10.6:1 22 JG1004-3405 334 F,PS,T 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -
359191 87,00 1,00 32,70 -10,8 0,06 10.6:1 22 JG1004-3425 337 F,M,PS,T 338490R(Left) / 338489R(Right) SB_AFA20_1HS_5090B6M-04 / SB5090-866 -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B8310H(HX/0,025/0,25) 5M8312H(HX/0,025/0,25) - 206-4301 260-6303 -
KING CR4616XPG 5M8312HOS2/OS5(+.002”/+.005”OD) MB5745XPG
CR4616XPGC - MB5745XPGC

176 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 177
