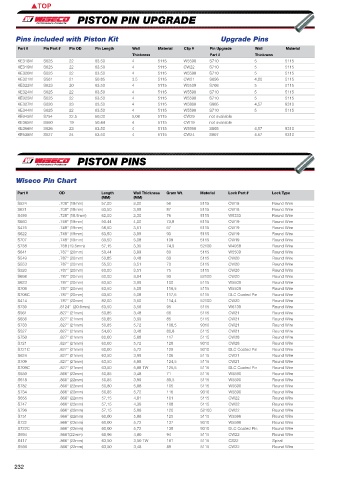

PISTON PIN UPGRADE PISTON PINS

Pins included with Piston Kit Upgrade Pins Wiseco Pin Chart
Part # Pin Part # Pin OD Pin Length Wall Material Clip # Pin Upgrade Wall Material Part # OD Length Wall Thickness Gram Wt. Material Lock Part # Lock Type
Thickness Part # Thickness (MM) (MM)
KE318M S625 22 63.50 4 5115 W5590 S710 5 5115 S625 .866" (22mm) 63,50 3,99 112 5115 W5590 Round Wire
KE319M S625 22 63.50 4 5115 CW22 S710 5 5115 S710 .866" (22mm) 63,50 5,00 132 5115 W5590 Round Wire
KE320M S625 22 63.50 4 5115 W5590 S710 5 5115 S710C .866" (22mm) 63,50 5,00 133 5115 DLC Coated Pin Round Wire
KE321M S561 21 50.85 3.5 5115 CW21 S656 4,00 5115 S720 .875" (22.2mm) 62,74 4,78 129 5115 CW22 Round Wire
KE322M S623 20 63.50 4 5115 W5509 S708 5 5115 S754 .886" (22.5mm) 60,00 5,08 128 5115 CW29 Round Wire
S611 .901" 63,50 4,06 122 5115 W5860 Round Wire
KE324M S625 22 63.50 4 5115 W5590 S710 5 5115
KE325M S625 22 63.50 4 5115 W5590 S710 5 5115 S551 .9055" (23mm) 50,85 3,48 75 5115 CW23 Round Wire
KE327M S626 23 63.50 4 5115 W5860 S805 4,57 9310 S790 .9055" (23mm) 57,15 5,59 134 52100 CW23 Round Wire
KE344M S625 22 63.50 4 5115 W5590 S710 5 5115 S752 .9055" (23mm) 60,00 5,08 132 5115 W5860 Round Wire
KE345M S754 22.5 60,00 5,08 5115 CW29 not available S792 .9055" (23mm) 57,15 5,59 142 52100 CW23 Round Wire
KE365M S660 19 50.44 4 5115 CW19 not available S794 .9055" (23mm) 60,00 5,69 145 52100 CW23 Round Wire
KE366M S626 23 63.50 4 5115 W5860 S805 4,57 9310 S729 .9055" (23mm) 63,50 5,13 142 5115 W5939 Snap Ring
KE538M S627 24 63.50 4 5115 CW24 S807 4.57 9310 S789 .9055" (23mm) 63,50 5,59 TW 150 52100 CW23 Round Wire
S805 .9055" (23mm) 63.50 4,57 - 9310 W5939 Snap Ring
S489 .912" 63,50 4,06 122 5115 CS24 Spiral
S761 .9252" 57,15 3,76 104 5115 CS24 Spiral
PISTON PINS S643 .927" 57,15 3,81 104 5115 CS24 Spiral
57,15
3,81 TW
.927"
105
Round Wire
S594
5115
W5752
S691 .927" 57,15 4,39TW 109 9310 CS24 Spiral
S718 .927" 57,15 5,08 132 9310 CS24 Spiral
Wiseco Pin Chart S699 .927" 63,50 3,81 TW 106 52100 CS24 Spiral
S425 .927" 63,50 3,81 105 9310 CS24 Spiral
Part # OD Length Wall Thickness Gram Wt. Material Lock Part # Lock Type S424 .927" 63,50 3,81 117 5115 CS24 Spiral
(MM) (MM) S575 .927" 63,50 3,81 117 5115 W5075 Round Wire
S524 .708" (18mm) 57,00 3,00 56 5115 CW18 Round Wire S756 .927" 63,50 3,81 117 5115 W5075 Round Wire
S621 .708" (18mm) 63,50 3,99 87 5115 CW18 Round Wire S765 .927" 63,50 4,57 135 5115 CS24 Spiral
S499 .728" (18.5mm) 62,00 3,30 76 5115 W5333 Round Wire S703 .927" 63,50 5,08 146 52100 CS24 Spiral
S660 .748" (19mm) 50.44 4,00 73,8 5115 CW19 Round Wire S795 .927" 69,85 3,94 130 5115 W5075 Round Wire
S475 .748" (19mm) 58,50 3,51 67 5115 CW19 Round Wire S801 .927" 69,85 5,59 TW 172 52100 CS24 Spiral
S622 .748" (19mm) 63,50 3,99 93 5115 CW19 Round Wire S426 .927" 74,93 3,81 123 9310 CS24 Spiral
S707 .748" (19mm) 63,50 5,08 109 5115 CW19 Round Wire S451 .927" 74,93 3,81 137 5115 CS24 Spiral
S738 .768 (19.5mm) 57,15 3,30 74,9 52100 W4958 Round Wire S758 .930" 63,50 3,81 118 5115 CS24 Spiral
S641 .787" (20mm) 50,44 3,99 80 5115 W5509 Round Wire S657 .945" (24mm) 57,15 4,01 112 5115 W6045 Round Wire
S549 .787" (20mm) 50,85 3,48 63 5115 CW20 Round Wire S785 .945" (24mm) 57,15 4,45 121,5 52100 W6045 Round Wire
S553 .787" (20mm) 55,50 3,51 70 5115 CW20 Round Wire S627 .945" (24mm) 63,50 3,99 125 5115 CW24 Round Wire
S520 .787" (20mm) 60,00 3,51 75 5115 CW20 Round Wire S490 .975" 74,42 3,94 148 5115 CS25 Spiral
S698 .787" (20mm) 60,00 3,94 93 52100 CW20 Round Wire S706 .980" 74,42 4,06 157 5115 CS25 Spiral
S623 .787" (20mm) 63,50 3,99 100 5115 W5509 Round Wire S803 .984"(25mm) 57,15 3,94 116 5115 CS25 Spiral
S708 .787" (20mm) 63,50 5,08 116,5 5115 W5509 Round Wire S547 .984"(25mm) 63,50 3,81 126 5115 CS25 Spiral
S708C .787" (20mm) 63,50 5,08 117,5 5115 DLC Coated Pin Round Wire S760 .990" 63,50 4,65 146 5115 CS25 Spiral
S414 .787" (20mm) 82,00 3,50 114,4 52100 CW20 Round Wire S776 .990" 67,31 5,18 TW 170 52100 CS25 Spiral
S730 .8124" (20.6mm) 63,50 3,56 95 5115 W6139 Round Wire S460 .990" 74,42 4,06 157 5115 CS25 Spiral
S561 .827" (21mm) 50,85 3,48 66 5115 CW21 Round Wire S462 .990" 74,42 4,57 173 5115 CS25 Spiral
S656 .827" (21mm) 50,85 3,99 85 5115 CW21 Round Wire S726 .990" 74,42 4,57 172 52100 CS25 Spiral
S733 .827" (21mm) 50,85 5,72 108,5 9310 CW21 Round Wire S667 .990" 74,42 5,08 187 52100 CS25 Spiral
S527 .827" (21mm) 54,00 3,48 80,8 5115 CW21 Round Wire S797 .990" 74,42 5,72 203 52100 CS25 Spiral
S750 .827" (21mm) 60,00 5,08 117 5115 CW28 Round Wire S757 1.000" 69,85 4,06 148 5115 CS25 Spiral
S721 .827" (21mm) 60,00 5,72 128 9310 CW28 Round Wire S614 1.000" 74,42 4,19 163 5115 CS25 Spiral
S721C .827" (21mm) 60,00 5,72 129 9310 DLC Coated Pin Round Wire S791 1.031" 74,42 4,32 170 5115 W5301 Spiral
S624 .827" (21mm) 63,50 3,99 106 5115 CW21 Round Wire S497 1.040" 74,42 4,70 188 5115 W5314 Spiral
S709 .827" (21mm) 63,50 5,08 124,5 5115 CW21 Round Wire S768 1.094" 74,42 5,46 220 5115 W5315 Spiral
S709C .827" (21mm) 63,50 5,08 TW 125,5 5115 DLC Coated Pin Round Wire S498 1.094" 79,38 5,38 236 5115 W5315 Spiral
S550 .866" (22mm) 50,85 3,48 71 5115 W5590 Round Wire
S618 .866" (22mm) 50,85 3,99 89,5 5115 W5590 Round Wire
S782 .866" (22mm) 50,80 5,08 105 5115 W5590 Round Wire
S734 .866" (22mm) 50,85 5,72 116 9310 W5590 Round Wire
S655 .866" (22mm) 57,15 4,01 101 5115 CW22 Round Wire
S747 .866" (22mm) 57,15 4,39 108 5115 CW22 Round Wire
S796 .866" (22mm) 57,15 5,08 120 52100 CW22 Round Wire
S751 .866" (22mm) 60,00 5,08 125 5115 W5590 Round Wire
S722 .866" (22mm) 60,00 5,72 137 9310 W5590 Round Wire
S722C .866" (22mm) 60,00 5,72 138 9310 DLC Coated Pin Round Wire
S694 .8661(22mm) 60,96 4,00 94 5115 CW22 Round Wire
S417 .866" (22mm) 63,50 3,50 TW 101 5115 CS22 Spiral
S566 .866" (22mm) 63,50 3,48 89 5115 CW22 Round Wire
