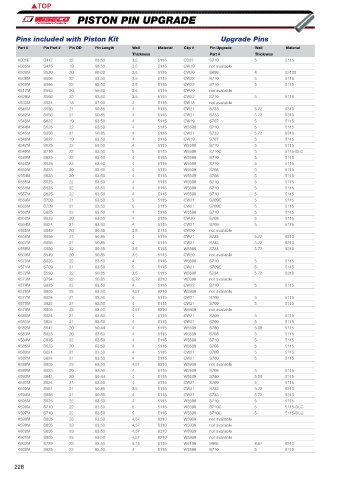

PISTON PIN UPGRADE PISTON PIN UPGRADE

Pins included with Piston Kit Upgrade Pins Pins included with Piston Kit Upgrade Pins
Part # Pin Part # Pin OD Pin Length Wall Material Clip # Pin Upgrade Wall Material Part # Pin Part # Pin OD Pin Length Wall Material Clip # Pin Upgrade Wall Material
Thickness Part # Thickness Thickness Part # Thickness
K001E S417 22 63.50 3.5 5115 CS22 S710 5 5115 K606M S625 22 63.50 4 5115 W5590 S710 5 5115
K505M S475 19 58.50 3.5 5115 CW19 not available K607M S623 20 63.50 4 5115 W5509 S708 5 5115
K506M S520 20 60.00 3.5 5115 CW20 S698 4 52100 K608M S623 20 63.50 4 5115 W5509 S708 5 5115
K508M S566 22 63.50 3.5 5115 CW22 S710 5 5115 K609M S624 21 63.50 4 5115 CW21 S709 5 5115
K509M S566 22 63.50 3.5 5115 CW22 S710 5 5115 K610M S624 21 63.50 4 5115 CW21 S709 5 5115
K512M S553 20 55.50 3.5 5115 CW20 not available K611M S549 20 50.85 3.5 5115 W5509 not available
K528M S566 22 63.50 3.5 5115 CW22 S710 5 5115 K612M S623 20 63.50 4 5115 W5509 S708 5 5115
K533M S524 18 57.00 3 5115 CW18 not available K613M S625 22 63.50 4 5115 W5590 S710 5 5115
K541M S656 21 50.85 4 5115 CW21 S733 5.72 9310 K614M S622 19 63.50 4 5115 CW19 S707 5 5115
K542M S656 21 50.85 4 5115 CW21 S733 5.72 9310 K615M S625 22 63.50 4 5115 W5590 S710 5 5115
K543M S622 19 63.50 4 5115 CW19 S707 5 5115 K618M S624 21 63.50 4 5115 CW21 S709 5 5115
K544M S625 22 63.50 4 5115 W5590 S710 5 5115 K622M S618 22 50.80 4 5115 W5590 S734 5.72 9310
K545M S656 21 50.85 4 5115 CW21 S733 5.72 9310 K623M S656 21 50.85 4 5115 CW28 S733 5.72 9310
K546M S622 19 63.50 4 5115 CW19 S707 5 5115 K624M S622 19 63.50 4 5115 CW19 S707 5 5115
K547M S625 22 63.50 4 5115 W5590 S710 5 5115 K625M S721 21 60.00 5.72 9310 CW28 S721C 5.72 9310-DLC
K548M S710 22 63.50 5 5115 W5590 S710C 5 5115-DLC K626M S722 22 60.00 5.72 9310 W5590 S722C 5.72 9310-DLC
K549M S625 22 63.50 4 5115 W5590 S710 5 5115 K627M S722 22 60.00 5.72 9310 W5590 S722C 5.72 9310-DLC
K550M S625 22 63.50 4 5115 W5590 S710 5 5115 K628M S656 21 50.85 4 5115 CW28 S733 5.72 9310
K553M S623 20 63.50 4 5115 W5509 S708 5 5115 K629M S656 21 50.85 4 5115 CW28 S733 5.72 9310
K554M S623 20 63.50 4 5115 W5509 S708 5 5115 K630M S641 20 50.44 4 5115 W5509 S780 5.08 5115
K555M S625 22 63.50 4 5115 W5590 S710 5 5115 K631M S618 22 50.80 4 5115 W5590 S734 5.72 9310
K556M S625 22 63.50 4 5115 W5590 S710 5 5115 K632M S551 23 50.85 3.5 5115 CW23 not available
K557M S625 22 63.50 4 5115 W5590 S710 5 5115 K633M S417 22 63.50 3.5 5115 CS22 S710 5 5115
K559M S709 21 63.50 5 5115 CW21 S709C 5 5115 K634M S618 22 50.80 4 5115 W5590 S734 5.72 9310
K560M S709 21 63.50 5 5115 CW21 S709C 5 5115 K635M S752 23 60.00 5 5115 W5860 S794 5.72 52100
K562M S625 22 63.50 4 5115 W5590 S710 5 5115 K636M S790 23 57,15 5,72 52100 W5860 not available
K563M S623 20 63.50 4 5115 CW20 S708 5 5115 K637M S524 18 57.00 3 5115 CW18 not available
K564M S624 21 63.50 4 5115 CW21 S709 5 5115 K640M S754 22.5 60.00 5 5115 CW29 not available
K565M S549 20 50.85 3.5 5115 CW20 not available K641M S710 22 63.50 5 5115 W5590 S710C 5 5115-DLC
K566M S656 21 50.85 4 5115 CW21 S733 5.72 9310 K642M S627 24 63.50 4 5115 W6045 S807 4.57 9310
K567M S656 21 50.85 4 5115 CW21 S733 5.72 9310 K643M S710 22 63.50 5 5115 W5590 S710C 5 5115-DLC
K568M S550 22 50.85 3.5 5115 W5590 S734 5.72 9310 K649M S750 21 60.00 5 5115 CW28 S721 5.72 9310
K569M S549 20 50.85 3.5 5115 CW20 not available K650M S550 22 50.85 3.5 5115 W5590 S734 5.72 9310
K570M S625 22 63.50 4 5115 W5590 S710 5 5115 K651M S751 22 60.00 5 5115 W5590 S722 5.72 9310
K571M S709 21 63.50 5 5115 CW21 S709C 5 5115 K655M S751 22 60.00 5 5115 W5590 S722 5.72 9310
K572M S550 22 50.85 3.5 5115 W5590 S734 5.72 9310 K656M S722 22 60.00 5.72 9310 W5590 S722C 5.72 9310-DLC
K573M S734 22 50.85 5.72 9310 W5590 not available K662M S721 21 60.00 5.72 9310 CW28 S721C 5.72 9310-DLC
K574M S625 22 63.50 4 5115 CW22 S710 5 5115 K666M S782 22 50.80 5 5115 W5590 S734 5.72 9310
K576M S805 23 63.50 4,57 9310 W5939 not available K667M S782 22 50.80 5 5115 W5590 S734 5.72 9310
K577M S624 21 63.50 4 5115 CW21 S709 5 5115 K668M S734 22 50.80 5.72 9310 W5594 not available
K578M S624 21 63.50 4 5115 CW21 S709 5 5115 K669M S734 22 50.80 5.72 9310 W5594 not available
K579M S805 23 63.50 4,57 9310 W5939 not available K670M S623 20 63.50 4 5115 CW20 S708 5 5115
K580M S624 21 63.50 4 5115 CW21 S709 5 5115 K671M S623 20 63.50 4 5115 CW20 S708 5 5115
K581M S624 21 63.50 4 5115 CW21 S709 5 5115 K672M S623 20 63.50 4 5115 CW20 S708 5 5115
K582M S641 20 50.44 4 5115 W5509 S780 5.08 5115 K673M S733 21 50.85 5.72 9310 CW21 not available
K583M S623 20 63.50 4 5115 W5509 S708 5 5115 K674M S751 22 60.00 5.08 5115 W5590 S722 5.72 9310
K584M S625 22 63.50 4 5115 W5590 S710 5 5115 K675M S751 22 60.00 5.08 5115 W5590 S722 5.72 9310
K585M S623 20 63.50 4 5115 W5509 S708 5 5115 K676M S751 22 60.00 5.08 5115 W5590 S722 5.72 9310
K586M S624 21 63.50 4 5115 CW21 S709 5 5115 K677M S796 22 57,15 5,08 52100 W5594 not available
K587M S624 21 63.50 4 5115 CW21 S709 5 5115 K678M S796 22 57,15 5,08 52100 W5594 not available
K588M S805 23 63.50 4,57 9310 W5939 not available K679M S782 22 50.80 5.08 5115 W5590 S734 5.72 9310
K589M S623 20 63.50 4 5115 W5509 S708 5 5115 K680M S790 23 57.15 5.72 52100 W5860 not available
K590M S641 20 50.44 4 5115 W5509 S780 5.08 5115 K681M S790 23 57.15 5.72 52100 W5860 not available
K591M S624 21 63.50 4 5115 CW21 S709 5 5115 K682M S551 23 50.85 3.5 5115 CW23 not available
K593M S561 21 50.85 3.5 5115 CW21 S733 5.72 9310 K683M S622 19 63.50 4 5115 CW19 S707 5 5115
K594M S656 21 50.85 4 5115 CW21 S733 5.72 9310 K687M S621 18 63.50 4 5115 CW18 not available
K595M S625 22 63.50 4 5115 W5590 S710 5 5115 KE103M S627 24 63.50 4 5115 W6045 S807 4.57 9310
K596M S710 22 63.50 5 5115 W5590 S710C 5 5115-DLC KE105M S729 23 63.50 5.15 5115 W5939 S805 4,57 9310
K597M S710 22 63.50 5 5115 W5590 S710C 5 5115-DLC KE106M S626 23 63.50 4 5115 W5860 S805 4,57 9310
K598M S805 23 63.50 4,57 9310 W5939 not available KE107M S626 23 63.50 4 5115 CW23 S805 4,57 9310
K599M S805 23 63.50 4,57 9310 W5939 not available KE108M S626 23 63.50 4 5115 W5860 S805 4,57 9310
K600M S805 23 63.50 4,57 9310 W5939 not available KE109M S626 23 63.50 4 5115 W5860 S805 4,57 9310
K601M S805 23 63.50 4,57 9310 W5939 not available KE110M S722 22 60.00 5.72 9310 W5590 S722C 5.72 9310-DLC
K602M S729 23 63.50 5.15 5115 W6198 S805 4,57 9310 KE111M S722 22 60.00 5.72 9310 W5590 S722C 5.72 9310-DLC
K605M S625 22 63.50 4 5115 W5590 S710 5 5115 KE112M S566 22 63.50 3.5 5115 CW22 S710 5 5115
