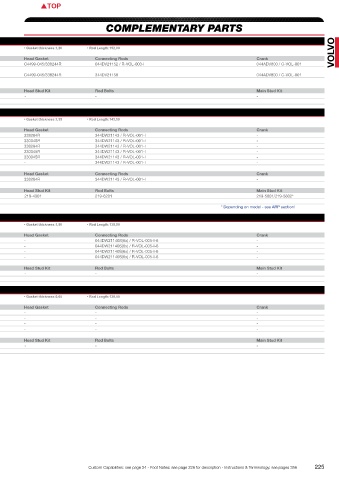

Volvo PISTONS COMPLEMENTARY PARTS

B234F as in 940
OEM Engine details 2,3 Ltr 16V Engine code:B234F • Displacement:2316 cc • Valves:16 • Comp. Ratio:10,0:1 • Head cc’s:45,40 • Gasket thickness:1,20 • Rod Length:152,00
Bore:96,00 • Stroke:80,00 • Block Ht:231,50 VOLVO
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
347568C 96,50 0,50 39,50 4 0 12,5:1 23 9650XX 495 F,M,P C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV800 / C-VOL-001
For long rod 158,00 mm
WCA16101 96,50 0,50 33,50 4 0 12,5:1 23 JC2801-3799 - F,M,P C4499-045/338244R 344DV21158 044ADV800 / C-VOL-001
* Critical bore size when used in high boost applications!
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B2726H - - - - -
KING CR4599XP - -
B5254 as in S60/V70
OEM Engine details 2,5 Ltr 20V Engine code:B5254 • Displacement:2522 cc • Valves:20 • Comp. Ratio:9,0:1 • Head cc’s:51,00 • Gasket thickness:1,35 • Rod Length:143,00
Bore:83,00 • Stroke:93,20 • Block Ht:220,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE327M83 83,00 Std. 30,50 -15,2 0,10 8,5:1 23 8300XX 326 1,R 338284R 344DW21143 / R-VOL-001-I -
KE327M835 83,50 0,50 30,50 -15,2 0,10 8,5:1 23 8350XX 332 1,R 330045R 344DW21143 / R-VOL-001-I -
KE227M83 83,00 Std. 30,50 -13 0,10 9,0:1 23 8300XX 335 1,R 338284R 344DW21143 / R-VOL-001-I -
KE227M835 83,50 0,50 30,50 -13 0,10 9,0:1 23 8350XX 340 1,R 330045R 344DW21143 / R-VOL-001-I -
KE227M84 84,00 1,00 30,50 -13 0,10 9,0:1 23 8400XX 346 1,M,R 330045R 344DW21143 / R-VOL-001-I -
KE227M845 84,50 1,50 30,50 -13 0,10 9,0:1 23 8450XX 353 1,M,R - 344DW21143 / R-VOL-001-I -

Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
333711C 83,00 Std. 30,50 -15,2 0,10 8,5:1 23 JG1001-3268 332 M,R 338284R 344DW21143 / R-VOL-001-I -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 219-4301 219-6201 219-5801/219-5802*
KING - - -
* Depending on model - see ARP section!
B6284T as in S80
OEM Engine details 2,8 Ltr 24V Engine code:B6284 • Displacement:2783 cc • Valves:24 • Comp. Ratio:8,5:1 • Head cc’s:51,00 • Gasket thickness:1,50 • Rod Length:139,50
Bore:81,00 • Stroke:90,00 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE156M81 81,00 Std. 35,90 -10 - 8,5:1 23 8100XX 339 1,R - 044DW21140S(6x) / R-VOL-005-I-6 -
KE156M8125 81,25 0,25 35,90 -10 - 8,5:1 23 8125XX 342 1,R - 044DW21140S(6x) / R-VOL-005-I-6 -
KE156M815 81,50 0,50 35,90 -10 - 8,5:1 23 8150XX 347 1,R - 044DW21140S(6x) / R-VOL-005-I-6 -
KE156M82 82,00 1,00 35,90 -10 - 8,5:1 23 8200XX 355 1,R - 044DW21140S(6x) / R-VOL-005-I-6 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
B8444S V8 as in XC90
OEM Engine details 4,4 Ltr 32V Engine code:B8444S • Displacement:4414 cc • Valves:32 • Comp. Ratio:10,4:1 • Head cc’s:46,00 • Gasket thickness:0,65 • Rod Length:138,50
Bore:94,00 • Stroke:79,50 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE210M94 94,00 Std. 29,75 -19 - 8,7:1 22 9400XX 336 1,M,R - - -
KE210M945 94,50 0,50 29,75 -19 - 8,7:1 22 9450XX 341 1,M,R - - -
KE211M94 94,00 Std. 29,75 -6 - 10,4:1 22 9400XX 388 1,M,R - - -
KE211M945 94,50 0,50 29,75 -6 - 10,4:1 22 9450XX 394 1,M,R - - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -

224 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 225
