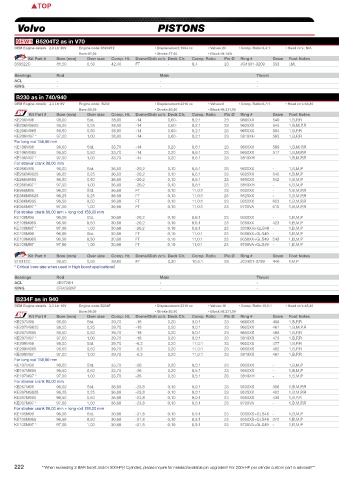

Page 221 - EA20_LR

TOP TOP

Volvo PISTONS COMPLEMENTARY PARTS

NEW!! B5204T2 as in V70
OEM Engine details 2,0 Ltr 20V Engine code:B5204T2 • Displacement:1984 cc • Valves:20 • Comp. Ratio:8,4:1 • Head cc’s: N/A • Gasket thickness:1,50 • Rod Length: 143,00
Bore:81,00 • Stroke:77,00 • Block Ht: N/A VOLVO
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
359522C 81,50 0,50 42,40 FT - 8,4 23 JG1001-3209 353 I,M, - 344DW21143 / R-VOL-001-I -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
B230 as in 740/940
OEM Engine details 2,3 Ltr 8V Engine code: B230 • Displacement:2316 cc • Valves:8 • Comp. Ratio:8,7:1 • Head cc’s:54,40 • Gasket thickness:1,20 • Rod Length:152,00
Bore:96,00 • Stroke:80,00 • Block Ht:231,50
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE206M96 96,00 Std. 38,90 -14 0,60- 8,2:1 23 9600XX 540 1,B,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV800 / C-VOL-001
KE206M9625 96,25 0,25 38,90 -14 0,60- 8,2:1 23 9625XX 545 1,B,M,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV800 / C-VOL-001
KE206M965 96,50 0,50 38,90 -14 0,60- 8,2:1 23 9650XX 554 1,B,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV800 / C-VOL-001
KE206M97 * 97,00 1,00 38,90 -14 0,60- 8,2:1 23 3819XH 563 1,B,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV800 / C-VOL-001
For long rod 158,00 mm
KE106M96 96,00 Std. 33,70 -14 0,20 8,6:1 23 9600XX 509 1,B,M,P,R C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV800 / C-VOL-001
KE106M965 96,50 0,50 33,70 -14 0,20 8,6:1 23 9650XX 517 1,B,M,P,R C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV800 / C-VOL-001
KE106M97 * 97,00 1,00 33,70 -14 0,20 8,6:1 23 3819XH - 1,B,M,P,R C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV800 / C-VOL-001
For stroker crank 86,00 mm
KE266M96 96,00 Std. 36,60 -20,2 0,10 8,6:1 23 9600XX - 1,B,M,P C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV860 / C-VOL-002
KE266M9625 96,25 0,25 36,60 -20,2 0,10 8,6:1 23 9625XX 540 1,B,M,P C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV860 / C-VOL-002
KE266M965 96,50 0,50 36,60 -20,2 0,10 8,6:1 23 9650XX 542 1,B,M,P C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV860 / C-VOL-002
KE266M97 * 97,00 1,00 36,60 -20,2 0,10 8,6:1 23 3819XH - 1,B,M,P C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV860 / C-VOL-002
KE366M96 96,00 Std. 36,60 FT 0,10 11,0:1 23 9600XX - 1,B,M,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV860 / C-VOL-002
KE366M9625 96,25 0,25 36,60 FT 0,10 11,0:1 23 9625XX - 1,B,M,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV860 / C-VOL-002
KE366M965 96,50 0,50 36,60 FT 0,10 11,0:1 23 9650XX 603 1,B,M,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV860 / C-VOL-002
KE366M97 * 97,00 1,00 36,60 FT 0,10 11,0:1 23 9700VA 610 1,B,M,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV860 / C-VOL-002
For stroker crank 86,00 mm + long rod 158,00 mm
KE108M96 96,00 Std. 30,60 -20,2 0,10 8,6:1 23 9600XX - 1,B,M,P C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV860 / C-VOL-002
KE108M965 96,50 0,50 30,60 -20,2 0,10 8,6:1 23 9650XX 423 1,B,M,P C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV860 / C-VOL-002
KE108M97 * 97,00 1,00 30,60 -20,2 0,10 8,6:1 23 3819XH+GLS49 - 1,B,M,P C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV860 / C-VOL-002
KE109M96 96,00 Std. 30,60 FT 0,10 11,0:1 23 9600XX+GLS49 - 1,B,M,P C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV860 / C-VOL-002
KE109M965 96,50 0,50 30,60 FT 0,10 11,0:1 23 9650XX+GLS49 543 1,B,M,P C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV860 / C-VOL-002
KE109M97 97,00 1,00 30,60 FT 0,10 11,0:1 23 9700VA+GLS49 - 1,B,M,P C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV860 / C-VOL-002

Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
319312C 96,50 0,50 39,80 FT 0,30 10,6:1 23 JC2801-3799 440 F,M,P C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV800 / C-VOL-001
* Critical bore size when used in high boost applications!

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B2726H - - - - -
KING CR4599XP - -
B234F as in 940
OEM Engine details 2,3 Ltr 16V Engine code:B234F • Displacement:2316 cc • Valves:16 • Comp. Ratio:10,0:1 • Head cc’s:45,40 • Gasket thickness:1,20 • Rod Length:152,00
Bore:96,00 • Stroke:80,00 • Block Ht:231,50
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE207M96 96,00 Std. 39,70 -18 0,20 9,0:1 23 9600XS 458 1,B,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV800 / C-VOL-001
KE207M9625 96,25 0,25 39,70 -18 0,20 9,0:1 23 9625XX 461 1,B,M,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV800 / C-VOL-001
KE207M965 96,50 0,50 39,70 -18 0,20 9,0:1 23 9650XS 468 1,B,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV800 / C-VOL-001
KE207M97 * 97,00 1,00 39,70 -18 0,20 9,0:1 23 3819XS 473 1,B,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV800 / C-VOL-001
KE209M96 96,00 Std. 39,70 -6,3 0,20 11,0:1 23 9600XS 477 1,B,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV800 / C-VOL-001
KE209M965 96,50 0,50 39,70 -6,3 0,20 11,0:1 23 9650XS 482 1,B,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV800 / C-VOL-001
KE209M97 97,00 1,00 39,70 -6,3 0,20 11,0:1 23 3819XS 487 1,B,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV800 / C-VOL-001
For long rod 158,00 mm
KE107M96 96,00 Std. 33,70 -26 0,20 8,5:1 23 9600XX - 1,B,M,P C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV800 / C-VOL-001
KE107M965 96,50 0,50 33,70 -26 0,20 8,5:1 23 9650XX - 1,B,M,P C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV800 / C-VOL-001
KE107M97 * 97,00 1,00 33,70 -26 0,20 8,5:1 23 3819XH - 1,B,M,P C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV800 / C-VOL-001
For stroker crank 86,00 mm
KE267M96 96,00 Std. 36,60 -23,8 0,10 9,0:1 23 9600XS 396 1,B,M,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV860 / C-VOL-002
KE267M9625 96,25 0,25 36,60 -23,8 0,10 9,0:1 23 9625XX 402 1,B,M,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV860 / C-VOL-002
KE267M965 96,50 0,50 36,60 -23,8 0,10 9,0:1 23 9650XS 436 1,B,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV860 / C-VOL-002
KE267M97 * 97,00 1,00 36,60 -23,8 0,10 9,0:1 23 9700VA - 1,B,M,P,R C4499-045/338244R 044DV21152 / R-VOL-003-I 044ADV860 / C-VOL-002
For stroker crank 86,00 mm + long rod 158,00 mm
KE105M96 96,00 Std. 30,60 -31,8 0,10 8,5:1 23 9600XS+GLS48 - 1,B,M,P C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV860 / C-VOL-002
KE105M965 96,50 0,50 30,60 -31,8 0,10 8,5:1 23 9650XS+GLS48 372 1,B,M,P C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV860 / C-VOL-002
KE105M97 * 97,00 1,00 30,60 -31,8 0,10 8,5:1 23 9700VA+GLS49 - 1,B,M,P C4499-045/338244R 344DV21158 / R-VOL-004-I 044ADV860 / C-VOL-002

222 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 223
