PISTONS

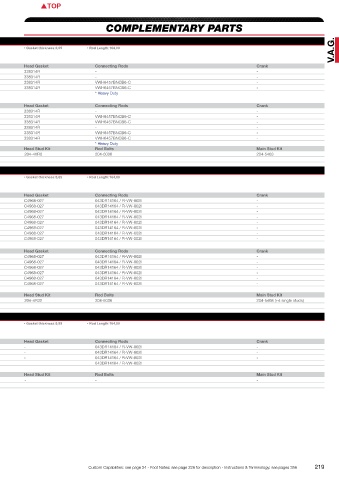

V.A.G. (Volkswagen/Audi/Škoda/Seat) PISTONS COMPLEMENTARY PARTS
2.8L VR6 24V as in Golf IV
OEM Engine details 2,8 Ltr 24V Engine code:AMV/AQP/AUE/AYL/BDE • Displacement:2792 cc • Valves:24 • Comp. Ratio:10,75:1 • Head cc’s:39,00 • Gasket thickness:0,65 • Rod Length:164,00 .A.G.
Bore:81,00 • Stroke:90,30 • Block Ht:247,00
C/R with 0 deck and 0,65 mm head gasket V
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE191M81 81,00 Std. 37,10 -20,2 0,75- 8,5:1 20 8100XX 350 1,M 338314R - -
KE191M8125 81,25 0,25 37,10 -20,2 0,75- 8,5:1 20 8125XX 352 1,M 338314R - -
KE191M815 81,50 0,50 37,10 -20,2 0,75- 8,5:1 20 8150XX 354 1,M 338314R VWH6457BNCB6-C -
KE191M82 82,00 1,00 37,10 -20,2 0,75- 8,5:1 20 8200XX 360 1,M 338314R VWH6457BNCB6-C -
* Heavy Duty
C/R with 0 deck and 0,65 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
279953 81,00 Std. 37,10 -19,5 0,75- 8,5:1 20 JG1006-3189 326 M,PS,R,T 338314R - -
279954 81,50 0,50 37,10 -20,2 0,75- 8,5:1 20 JG1006-3209 330 M,PS,R,T 338314R VWH6457BNCB6-C -
279955 82,00 1,00 37,10 -20,9 0,75- 8,5:1 20 JG1006-3228 338 M,PS,R,T 338314R VWH6457BNCB6-C -
279956 81,00 Std. 37,10 -3,5 0,75- 10.2:1 20 JG1006-3189 346 M,PS,R,V 338314R - -
279957 81,50 0,50 37,10 -3,5 0,75- 10.2:1 20 JG1006-3209 351 M,PS,R,V 338314R VWH6457BNCB6-C -
279958 82,00 1,00 37,10 -3,5 0,75- 10.2:1 20 JG1006-3228 356 M,PS,R,V 338314R VWH6457BNCB6-C -
* Heavy Duty
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 6B5530H(HX/0,025/0,25) 7M5532H(HX/0,025/0,25) 2T5532 204-4VR6 204-6006 204-5403
KING CR6764XP MB7089XP -
3.2L 24V R32 as in Golf IV+V
OEM Engine details 3,2 Ltr 24V Engine code:BFH/BML/BJS • Displacement:3189 cc • Valves:24 • Comp. Ratio:10,9:1/11,3:1 • Head cc’s:40,00 • Gasket thickness:0,65 • Rod Length:164,00
Bore:84,00 • Stroke:95,90 • Block Ht:247,00
C/R with 0 deck and 0,65 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE204M84 84,00 Std. 34,50 -30,5 0,55- 8,0:1 20 8400XX 328 M,R,T C4968-027 043DR14164 / R-VW-002I -
KE204M8425 84,25 0,25 34,50 -30,5 0,55- 8,0:1 20 8425XX 330 M,R,T C4968-027 043DR14164 / R-VW-002I -
KE204M845 84,50 0,50 34,50 -30,5 0,55- 8,0:1 20 8450XX 333 R,T C4968-027 043DR14164 / R-VW-002I -
KE204M85 85,00 1,00 34,50 -30,5 0,55- 8,0:1 20 8500XX 342 M,R,T C4968-027 043DR14164 / R-VW-002I -
KE205M84 84,00 Std. 34,50 -20,5 0,55- 9,0:1 20 8400XX 344 M,R,T C4968-027 043DR14164 / R-VW-002I -
KE205M8425 84,25 0,25 34,50 -20,5 0,55- 9,0:1 20 8425XX 346 M,R,T C4968-027 043DR14164 / R-VW-002I -
KE205M845 84,50 0,50 34,50 -20,5 0,55- 9,0:1 20 8450XX 348 R,T C4968-027 043DR14164 / R-VW-002I -
KE205M85 85,00 1,00 34,50 -20,5 0,55- 9,0:1 20 8500XX 352 M,R,T C4968-027 043DR14164 / R-VW-002I -
C/R with 0 deck and 0,65 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
279946 84,00 Std. 34,50 -27 0,55- 8,5:1 20 JG1006-3307 328 PS,R,T C4968-027 043DR14164 / R-VW-002I -
279947 84,50 0,50 34,50 -27,8 0,55- 8,5:1 20 JG1006-3327 334 PS,R,T C4968-027 043DR14164 / R-VW-002I -
279948 85,00 1,00 34,50 -28,6 0,55- 8,5:1 20 JG1006-3346 337 PS,R,T C4968-027 043DR14164 / R-VW-002I -
279949 84,00 Std. 34,50 -6,8 0,55- 11,5:1 20 JG1006-3307 328 M,PS,R,T C4968-027 043DR14164 / R-VW-002I -
279950 84,50 0,50 34,50 -7,4 0,55- 11,5:1 20 JG1006-3327 334 M,PS,R,T C4968-027 043DR14164 / R-VW-002I -
279951 85,00 1,00 34,50 -7,9 0,55- 11,5:1 20 JG1006-3346 354 M,PS,R,T C4968-027 043DR14164 / R-VW-002I -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 6B5530H(HX/0,025/0,25) 7M5532H(HX/0,025/0,25) 2T5532 204-4R32 204-6006 204-5408 (+4 single studs)
KING CR6764XP MB7089XP -
3.6L 24V R36 as in Passat
OEM Engine details 3,6 Ltr 24V FSI Engine code:BWS/BHK/CDVA • Displacement:3598 cc • Valves:24 • Comp. Ratio:11,4:1 • Head cc’s:46,50 • Gasket thickness:0,95 • Rod Length:164,00
Bore:89,00 • Stroke:96,40 • Block Ht:243,32
C/R with 0 deck and 0,95 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
329111C 90,00 1,00 31,12 -28,8 0 8,5:1 20 JG1001-3544 380 M,T - 043DR14164 / R-VW-002I -
318328C 89,00 Std. 31,12 -21,2 0 9,0:1 20 JG1001-3504 385 M,T - 043DR14164 / R-VW-002I -
318328C-89,50 89,50 0,50 31,12 -21,2 0 9,0:1 20 JG1001-3524 392 M,T - 043DR14164 / R-VW-002I -
346991C 90,00 1,00 31,12 -5 0 11,5:1 20 JG1001-3544 401 M,I 043DR14164 / R-VW-002I
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 6B5530H(HX/0,025/0,25) 7M5532H(HX/0,025/0,25) 2T5532 - - -
KING CR6764XP MB7089XP -
218 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 219
