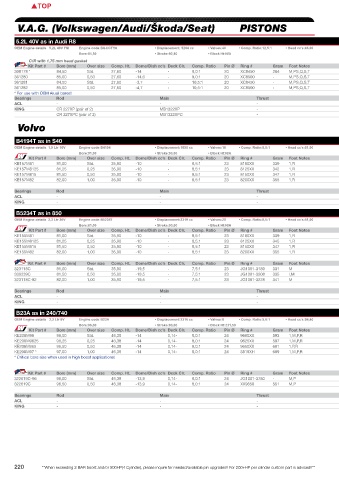

V.A.G. (Volkswagen/Audi/Škoda/Seat) PISTONS COMPLEMENTARY PARTS
PISTONS
5.2L 40V as in Audi R8
OEM Engine details 5,2L 40V FSI Engine code:BUJ/CTYA • Displacement: 5204 cc • Valves:40 • Comp. Ratio:12,5:1 • Head cc’s:46,00 • Gasket thickness:N/A • Rod Length:154,00 .A.G.
Bore:84,50 • Stroke:92,80 • Block Ht:N/A
C/R with 1,75 mm head gasket V
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
308178 * 84,50 Std. 27,60 -14 - 9,0:1 20 XC8450 284 M,PS,Q,S,T - - -
361280 85,00 0,50 27,60 -14,6 - 9,0:1 20 XC8500 - M,PS,Q,S,T - LM-5.2V10-T-8M6063S-10 -
361281 84,50 Std. 27,60 -3,7 - 10,5:1 20 XC8450 - M,PS,Q,S,T - LM-5.2V10-T-8M6063S-10 -
361282 85,00 0,50 27,60 -4,7 - 10,5:1 20 XC8500 - M,PS,Q,S,T - LM-5.2V10-T-8M6063S-10 -
* For use with OEM Alusil bores!
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING CR 227XP (pair of 2) MB1322XP -
CR 227XPC (pair of 2) MB1322XPC -

Volvo

B4194T as in S40
OEM Engine details 1,9 Ltr 16V Engine code:B4194 • Displacement:1855 cc • Valves:16 • Comp. Ratio:8,5:1 • Head cc’s:51,00 • Gasket thickness:1,50 • Rod Length:139,50
Bore:81,00 • Stroke:90,00 • Block Ht:N/A VOLVO
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE157M81 81,00 Std. 35,90 -10 - 8,5:1 23 8100XX 339 1,R - 044DW21140S(4x) / R-VOL-005-I-4 -
KE157M8125 81,25 0,25 35,90 -10 - 8,5:1 23 8125XX 342 1,R - 044DW21140S(4x) / R-VOL-005-I-4 -
KE157M815 81,50 0,50 35,90 -10 - 8,5:1 23 8150XX 347 1,R - 044DW21140S(4x) / R-VOL-005-I-4 -
KE157M82 82,00 1,00 35,90 -10 - 8,5:1 23 8200XX 355 1,R - 044DW21140S(4x) / R-VOL-005-I-4 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
B5234T as in 850
OEM Engine details 2,3 Ltr 20V Engine code:B5234T • Displacement:2319 cc • Valves:20 • Comp. Ratio:8,5:1 • Head cc’s:51,00 • Gasket thickness:1,50 • Rod Length:139,50
Bore:81,00 • Stroke:90,00 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE155M81 81,00 Std. 35,90 -10 - 8,5:1 23 8100XX 339 1,R H1508SP3070S 044DW21140 / R-VOL-005-I-5 -
KE155M8125 81,25 0,25 35,90 -10 - 8,5:1 23 8125XX 345 1,R H1508SP3070S 044DW21140 / R-VOL-005-I-5 -
KE155M815 81,50 0,50 35,90 -10 - 8,5:1 23 8150XX 347 1,R H1508SP3070S 044DW21140 / R-VOL-005-I-5 -
KE155M82 82,00 1,00 35,90 -10 - 8,5:1 23 8200XX 355 1,R H1508SP3070S 044DW21140 / R-VOL-005-I-5 -
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
323118C 81,00 Std. 35,90 -19,5 - 7,5:1 23 JG1001-3189 331 M H1508SP2059F 044DW21140 / R-VOL-005-I-5 -
339239C 81,50 0,50 35,90 -19,5 - 7,5:1 23 JG1001-3208 335 I,M H1508SP2059F 044DW21140 / R-VOL-005-I-5 -
323118C-82 82,00 1,00 35,90 -19,5 - 7,5:1 23 JG1001-3228 341 M H1508SP2059F 044DW21140 / R-VOL-005-I-5 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
B23A as in 240/740
OEM Engine details 2,3 Ltr 8V Engine code:B23A • Displacement:2316 cc • Valves:8 • Comp. Ratio:9,0:1 • Head cc’s:54,40 • Gasket thickness:1,40 • Rod Length:145,00
Bore:96,00 • Stroke:80,00 • Block Ht:231,50
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE208M96 96,00 Std. 46,38 -14 0,14- 8,0:1 24 9600XX 593 1,M,P,R C4499-056 R-VOL-002H -
KE208M9625 96,25 0,25 46,38 -14 0,14- 8,0:1 24 9625XX 597 1,M,P,R C4499-056 R-VOL-002H -
KE208M965 96,50 0,50 46,38 -14 0,14- 8,0:1 24 9650XX 601 1,P,R C4499-056 R-VOL-002H -
KE208M97 * 97,00 1,00 46,38 -14 0,14- 8,0:1 24 3819XH 609 1,M,P,R C4499-056 R-VOL-002H -
* Critical bore size when used in high boost applications!

Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
322619C-96 96,00 Std. 46,38 -13,9 0,14- 8,0:1 24 JG1001-3780 - M,P C4499-056 R-VOL-002H -
322619C 96,50 0,50 46,38 -13,9 0,14- 8,0:1 24 XX9650 551 M,P C4499-056 R-VOL-002H -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -

220 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 221
