PISTONS

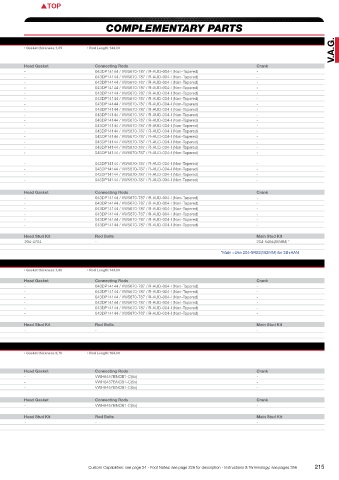

V.A.G. (Volkswagen/Audi/Škoda/Seat) PISTONS COMPLEMENTARY PARTS
2.2L 20V as in Audi RS2
OEM Engine details 2,2 Ltr 20V Engine code:3B/RR/AAN/ABY/ADU • Displ.:2226 cc • Valves:20 • Comp. Ratio:9,3:1 • Head cc’s:46,00 • Gasket thickness:1,65 • Rod Length:144,00 .A.G.
Bore:81,00 • Stroke:86,40 • Block Ht:220,00
C/R with 1,00 mm head gasket/KE295M/KE296M/KE298M with 1,65 mm head gasket V
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE222M81 81,00 Std. 32,80 -21 0 7,2:1 20 8100XX 280 1,F,M,Q - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE222M815 81,50 0,50 32,80 -21 0 7,2:1 20 8150XX 283 1,F,M,Q - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE222M82 82,00 1,00 32,80 -21 0 7,2:1 20 8200XX 289 1,F,M,Q - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE222M83 83,00 2,00 32,80 -21 0 7,2:1 20 8300XX 302 1,F,M,Q - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE322M815 81,50 0,50 32,80 -21 0 7,2:1 20 8150XX 314 1,M,R - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE322M82 82,00 1,00 32,80 -21 0 7,2:1 20 8200XX 319 1,M,R - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE295M81AP 81,00 Std. 32,65 -7,4 0,15- 8,1:1 20 8100XX 300 1,F,Q,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE295M8125AP 81,25 0,25 32,65 -7,4 0,15- 8,1:1 20 8125XX 300 1,F,Q - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE295M815AP 81,50 0,50 32,65 -7,4 0,15- 8,1:1 20 8150XX 305 1,F,Q - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE295M82AP 82,00 1,00 32,65 -7,4 0,15- 8,1:1 20 8200XX 310 1,F,Q - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE295M825AP 82,50 1,50 32,65 -7,4 0,15- 8,1:1 20 8250XX 315 1,F,Q,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE295M83AP 83,00 2,00 32,65 -7,4 0,15- 8,1:1 20 8300XX 320 1,F,Q,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE296M81AP 81,00 Std. 32,65 -0,6 0,15- 9,0:1 20 8100XX - 1,F,Q,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE296M815AP 81,50 0,50 32,65 -0,6 0,15- 9,0:1 20 8150XX - 1,F,Q - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE296M82AP 82,00 1,00 32,65 -1,3 0,15- 9,0:1 20 8200XX - 1,F,Q - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE296M825AP 82,50 1,50 32,65 -1,3 0,15- 9,0:1 20 8250XX - 1,F,Q,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
For 92,80 mm stroker crank (C/R with 1,65 mm head gasket)
KE298M81AP 81,00 Std. 29,45 -4,8 0,15- 9,0:1 20 8100XX - 1,F,Q,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE298M815AP 81,50 0,50 29,45 -4,8 0,15- 9,0:1 20 8150XX - 1,F,Q,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE298M82AP 82,00 1,00 29,45 -5,5 0,15- 9,0:1 20 8200XX - 1,F,Q,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE298M825AP 82,50 1,50 29,45 -5,5 0,15- 9,0:1 20 8250XX - 1,F,Q,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
302228 81,00 Std, 32,80 -7,6 0 8,5:1 20 JG1005-3189 279 PS,Q,S,T - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
302229 81,50 0,50 32,80 -8,3 0 8,5:1 20 JG1005-3209 285 PS,Q,S,T - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
335827C 82,00 1,00 32,80 -8,3 0 8,5:1 20 JG1001-3228 292 M,Q,S,T - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
330085C-81 81,00 Std, 32,80 -0,6 0 9,5:1 20 JG1001-3189 290 M,Q,S,T - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
330085C 81,50 0,50 32,80 -0,9 0 9,5:1 20 JG1001-3209 296 M,Q,S,T - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
338992C 82,00 1,00 32,80 -1,2 0 9,5:1 20 JG1001-3228 302 M,Q,S,T - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 204-4704 - 204-5404(85MM) *
KING - MB 605XP TW2009AM
*Main =Use 204-5RS2(102MM) for 3B+AAN
2.3L 20V as in Audi 90
OEM Engine details 2,3 Ltr 20V Engine code:7A • Displacement:2309 cc • Valves:20 • Comp. Ratio:10,3:1 • Head cc’s:44,00 • Gasket thickness:1,80 • Rod Length:144,00
Bore:82,50 • Stroke:86,40 • Block Ht:220,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE261M825 82,50 Std. 33,40 -12,7 0,60 8,5:1 20 8250XX - 1,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE261M83 83,00 0,50 33,40 -12,7 0,60 8,5:1 20 8300XX 335 1,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE261M835 83,50 1,00 33,40 -12,7 0,60 8,5:1 20 8350XX - 1,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE262M825 82,50 Std. 33,40 2 0,60 10,5:1 20 8250XX 329 1,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE262M83 83,00 0,50 33,40 2 0,60 10,5:1 20 8300XX 330 1,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
KE262M835 83,50 1,00 33,40 2 0,60 10,5:1 20 8350XX - 1,M - 043DP14144 / VW5670-787 / R-AUD-004-I (Non-Tapered) -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING CR 505XP MB 605XP TW2009AM
2.3L 10V VR5 as in Golf IV/Bora/Passat/Toledo
OEM Engine details 2,3 Ltr 10V Engine code:AGZ • Displacement:2324 cc • Valves:10 • Comp. Ratio:10,0:1 • Head cc’s:0 • Gasket thickness:0,70 • Rod Length:164,00
Bore:81,00 • Stroke:90,20 • Block Ht:242,00
C/R with 0,70 mm head gasket and 25cc head
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
6608M82(5x) 82,00 1,00 32,38 -26,2 0,52- 9,0:1 20 8200XX 278 1,R - VWH6457BNCB1-C(5x) -
6608M825(5x) 82,50 1,50 32,38 -26,2 0,52- 9,0:1 20 8250XX 283 1,M,R - VWH6457BNCB1-C(5x) -
6608M83(5x) 83,00 2,00 32,38 -26,2 0,52- 9,0:1 20 8300XX 288 1,R - VWH6457BNCB1-C(5x) -
C/R with 0,70 mm head gasket and 39cc head
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
331457C 83,00 2,00 32,39 -25,7 0,51- 8,0:1 20 JG1001-3268 308 I,M - VWH6457BNCB1-C(5x) -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 6B5530H(HX/0,025/0,25) 7M5532H(HX/0,025/0,25) - - - -
KING CR6764XP MB7089XP -
214 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 215
