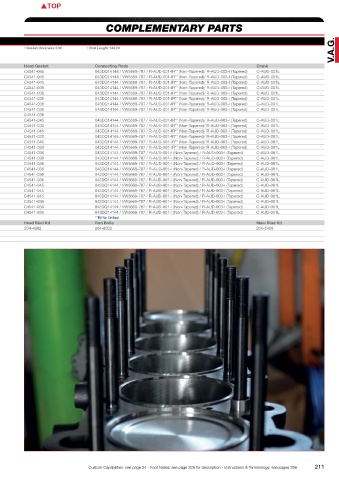

V.A.G. (Volkswagen/Audi/Škoda/Seat) PISTONS COMPLEMENTARY PARTS
PISTONS
2.0L 16V TFSI EA113 Belt Driven as in Golf V
OEM Engine details 2,0 Ltr 16V Engine code:AXX/BGB/BPJ/BPY/BWA • Displacement:1984 cc • Valves:16 • Comp. Ratio:10,5:1 • Head cc’s:45,00 • Gasket thickness:0,90 • Rod Length:144,00 .A.G.
Bore:82,50 • Stroke:92,80 • Block Ht:220,00
Asymmetrical FSR C/R with 1,10 mm head gasket - FSR+Round C/R with 0,90 mm head gasket - Ultra Series C/R with 0,79 mm head gasket V
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
302337 82,50 Std, 29,60 -15,3 0 8,5:1 20 JG1004-3250 272 Q,S,T C4541-045 043DQ14144 / VW5669-787 / R-AUD-001-IR** (Non-Tapered)/ R-AUD-003-I (Tapered) C-AUD-001L
302341 83,00 0,50 29,60 -16 0 8,5:1 20 JG1004-3268 275 Q,S,T C4541-045 043DQ14144 / VW5669-787 / R-AUD-001-IR** (Non-Tapered)/ R-AUD-003-I (Tapered) C-AUD-001L
302346 83,50 1,00 29,60 -16,7 0 8,5:1 20 JG1004-3287 279 Q,S,T C4541-045 043DQ14144 / VW5669-787 / R-AUD-001-IR** (Non-Tapered)/ R-AUD-003-I (Tapered) C-AUD-001L
279930 82,50 Std, 29,60 -11,5 0 9,1:1 20 JG1004-3250 290 PS,R,T C4541-036 043DQ14144 / VW5669-787 / R-AUD-001-IR** (Non-Tapered)/ R-AUD-003-I (Tapered) C-AUD-001L
279931 83,00 0,50 29,60 -12,2 0 9,1:1 20 JG1004-3268 294 M,PS,R,T C4541-036 043DQ14144 / VW5669-787 / R-AUD-001-IR** (Non-Tapered)/ R-AUD-003-I (Tapered) C-AUD-001L
279932 83,50 1,00 29,60 -12,9 0 9,1:1 20 JG1004-3287 298 M,PS,R,T C4541-036 043DQ14144 / VW5669-787 / R-AUD-001-IR** (Non-Tapered)/ R-AUD-003-I (Tapered) C-AUD-001L
353833 82,50 Std, 29,60 -10,5 0 9,25:1 20 JG1004-3250 283 F,PS,T C4541-036 043DQ14144 / VW5669-787 / R-AUD-001-IR** (Non-Tapered)/ R-AUD-003-I (Tapered) C-AUD-001L
353834 83,00 0,50 29,60 -11,25 0 9,25:1 20 JG1004-3268 - F,PS,T C4541-036 043DQ14144 / VW5669-787 / R-AUD-001-IR** (Non-Tapered)/ R-AUD-003-I (Tapered) C-AUD-001L
353835 83,50 1,00 29,60 -11,9 0 9,25:1 20 JG1004-3287 - F,PS,T C4541-036 -
302338 82,50 Std, 29,60 -7,4 0 9,5:1 20 JG1004-3250 278 Q,S,T C4541-045 043DQ14144 / VW5669-787 / R-AUD-001-IR** (Non-Tapered)/ R-AUD-003-I (Tapered) C-AUD-001L
367866 82,50 Std, 29,30 -7,4 0 9,5:1 20 JG1004-3250 - F,UL,T C4541-030 043DQ14144 / VW5669-787 / R-AUD-001-IR** (Non-Tapered)/ R-AUD-003-I (Tapered) C-AUD-001L
302342 83,00 0,50 29,60 -8 0 9,5:1 20 JG1004-3268 282 Q,S,T C4541-045 043DQ14144 / VW5669-787 / R-AUD-001-IR** (Non-Tapered)/ R-AUD-003-I (Tapered) C-AUD-001L
367867 83,00 0,50 29,30 -8,1 0 9,5:1 20 JG1004-3268 - F,UL,T C4541-030 043DQ14144 / VW5669-787 / R-AUD-001-IR** (Non-Tapered)/ R-AUD-003-I (Tapered) C-AUD-001L
302348 83,50 1,00 29,60 -8,7 0 9,5:1 20 JG1004-3287 285 Q,S,T C4541-045 043DQ14144 / VW5669-787 / R-AUD-001-IR** (Non-Tapered)/ R-AUD-003-I (Tapered) C-AUD-001L
367868 83,5 1,00 29,30 -8,7 0 9,5:1 20 JG1004-3287 - F,UL,T C4541-030 043DQ14144 / VW5669-787 / R-AUD-001-IR** (Non-Tapered)/ R-AUD-003-I (Tapered) C-AUD-001L
353836 82,50 Std, 29,60 -5,5 0 10,0:1 20 JG1004-3250 - F,PS,T C4541-036 043DQ14144 / VW5669-787 / R-AUD-001-I (Non-Tapered) / R-AUD-003-I (Tapered) C-AUD-001L
353837 83,00 0,50 29,60 -6,2 0 10,0:1 20 JG1004-3268 - F,PS,T C4541-036 043DQ14144 / VW5669-787 / R-AUD-001-I (Non-Tapered) / R-AUD-003-I (Tapered) C-AUD-001L
353838 83,50 1,00 29,60 -6,8 0 10,0:1 20 JG1004-3287 - F,PS,T C4541-036 043DQ14144 / VW5669-787 / R-AUD-001-I (Non-Tapered) / R-AUD-003-I (Tapered) C-AUD-001L
284779 82,50 Std, 29,60 -3,7 0 10,3:1 20 JG1004-3250 297 PS,R,T C4541-036 043DQ14144 / VW5669-787 / R-AUD-001-I (Non-Tapered) / R-AUD-003-I (Tapered) C-AUD-001L
284780 83,00 0,50 29,60 -4,3 0 10,3:1 20 JG1004-3268 301 PS,R,T C4541-036 043DQ14144 / VW5669-787 / R-AUD-001-I (Non-Tapered) / R-AUD-003-I (Tapered) C-AUD-001L
284781 83,50 1,00 29,60 -4,9 0 10,3:1 20 JG1004-3287 305 M,PS,R,T C4541-036 043DQ14144 / VW5669-787 / R-AUD-001-I (Non-Tapered) / R-AUD-003-I (Tapered) C-AUD-001L
302339 82,50 Std, 29,60 -1,3 0 10,5:1 20 JG1004-3250 285 Q,S,T C4541-045 043DQ14144 / VW5669-787 / R-AUD-001-I (Non-Tapered) / R-AUD-003-I (Tapered) C-AUD-001L
302343 83,00 0,50 29,60 -1,9 0 10,5:1 20 JG1004-3268 291 Q,S,T C4541-045 043DQ14144 / VW5669-787 / R-AUD-001-I (Non-Tapered) / R-AUD-003-I (Tapered) C-AUD-001L
302349 83,50 1,00 29,60 -2,4 0 10,5:1 20 JG1004-3287 294 Q,S,T C4541-045 043DQ14144 / VW5669-787 / R-AUD-001-I (Non-Tapered) / R-AUD-003-I (Tapered) C-AUD-001L
291883 82,50 Std, 29,60 -0,5 0 10,9:1 20 JG1004-3250 301 PS,R,T C4541-036 043DQ14144 / VW5669-787 / R-AUD-001-I (Non-Tapered) / R-AUD-003-I (Tapered) C-AUD-001L
291884 83,00 0,50 29,60 -0,5 0 11,0:1 20 JG1004-3268 309 PS,R,T C4541-036 043DQ14144 / VW5669-787 / R-AUD-001-I (Non-Tapered) / R-AUD-003-I (Tapered) C-AUD-001L
291885 83,50 1,00 29,60 -0,5 0 11,1:1 20 JG1004-3287 313 M,PS,R,T C4541-036 043DQ14144 / VW5669-787 / R-AUD-001-I (Non-Tapered) / R-AUD-003-I (Tapered) C-AUD-001L
* Note: Use rod 343EL16144 for 21mm pin upgrade with EA888 pistons!! **Riffle Drilled
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1609H(HX/0,025/0,25) (with notch - OEM rod) - - 204-4302 204-6302 204-5408
4B1606H(HX/0,025/0,25) (without notch ) - -
KING - MB5661XP -

210 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 211
