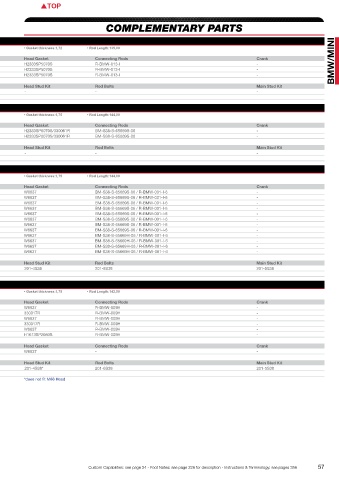

BMW/Mini PISTONS COMPLEMENTARY PARTS

M30B35 as in 535i(E34) Alpina
OEM Engine details 3,5 Ltr 12V Engine code:M30B35 • Displacement:3430 cc • Valves:12 • Comp. Ratio:7,4:1 • Head cc’s:N/A • Gasket thickness:1,72 • Rod Length:135,00
Bore:92,00 • Stroke:86,00 • Block Ht:217,50
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
349868C 92,50 0,50 39,83 -15 0,33 8,3:1 22 JG1001-3642 434 I,M,S,T H2333SP5070S R-BMW-013-I - BMW/MINI
352815C 93,50 1,50 39,83 -16,8 0,33 8,3:1 22 JG1001-3681 439 M,S,T H2333SP5070S R-BMW-013-I -
337727C 94,00 2,00 39,83 -16,8 0,33 8,0:1 22 JG1001-3701 445 I,M,S,T H2333SP5070S R-BMW-013-I -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
M30B35(M88/3)/S38B35 as in M635CSI(E24)
OEM Engine details 3,5 Ltr 12V Engine code:M30B35(M88/3) • Displacement:3453 cc • Valves:24 • Comp. Ratio:9,8:1/10,5:1 • Head cc’s:42,50 • Gasket thickness:1,75 • Rod Length:144,00
Bore:93,40 • Stroke:84,00 • Block Ht:217,50
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
351160C 93,50 0,10 32,00 -8,5 0,50 10,5:1 22 JG1001-3681 360 F,M H2333SP6070S/330061R BM-S38-S-65669S-06 -
349496C 94,00 0,60 32,00 -8,5 0,50 10,5:1 22 JG1001-3701 362 F,M H2333SP6070S/330061R BM-S38-S-65669S-06 -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
S38B36 as in M5(E34)
OEM Engine details 3,6 Ltr 24V Engine code:S38B36 • Displacement:3535 cc • Valves:24 • Comp. Ratio:10,0:1 • Head cc’s:34,00 • Gasket thickness:1,75 • Rod Length:144,00
Bore:93,40 • Stroke:86,00 • Block Ht:217,50
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE240M94 94,00 0,60 30,22 -38 0,28- 8,0:1 22 9400XX 365 1 W6637 BM-S38-S-65669S-06 / R-BMW-001-I-6 -
KE240M9425 94,25 0,85 30,22 -38 0,28- 8,0:1 22 9425XX 368 1,M W6637 BM-S38-S-65669S-06 / R-BMW-001-I-6 -
KE240M945 94,50 1,10 30,22 -38 0,28- 8,0:1 22 9450XX 372 1 W6637 BM-S38-S-65669S-06 / R-BMW-001-I-6 -
KE240M95 95,00 1,60 30,22 -38 0,28- 8,0:1 22 9500XX 375 1,M W6637 BM-S38-S-65669S-06 / R-BMW-001-I-6 -
KE241M94 94,00 0,60 30,22 -24 0,28- 9,4:1 22 9400XX 398 1,M W6637 BM-S38-S-65669S-06 / R-BMW-001-I-6 -
KE241M9425 94,25 0,85 30,22 -24 0,28- 9,4:1 22 9425XX 401 1,M W6637 BM-S38-S-65669S-06 / R-BMW-001-I-6 -
KE241M945 94,50 1,10 30,22 -24 0,28- 9,4:1 22 9450XX 404 1,M W6637 BM-S38-S-65669S-06 / R-BMW-001-I-6 -
KE241M95 95,00 1,60 30,22 -24 0,28- 9,4:1 22 9500XX 410 1,M W6637 BM-S38-S-65669S-06 / R-BMW-001-I-6 -
KE242M94 94,00 0,60 30,22 -6 0,28- 12,0:1 22 9400XX 355 1,M W6637 BM-S38-S-65669H-06 / R-BMW-001-I-6 -
KE242M9425 94,25 0,85 30,22 -6 0,28- 12,0:1 22 9425XX 356 1,M W6637 BM-S38-S-65669H-06 / R-BMW-001-I-6 -
KE242M945 94,50 1,10 30,22 -6 0,28- 12,2:1 22 9450XX 358 1,M W6637 BM-S38-S-65669H-06 / R-BMW-001-I-6 -
KE242M95 95,00 1,60 30,22 -6 0,28- 12,2:1 22 9500XX 362 1,M W6637 BM-S38-S-65669H-06 / R-BMW-001-I-6 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1568H(HX/0,025/0,25)(1,5x) - - 201-4S38 201-6S38 201-5S38
KING - - -
S38B38 as in M5(E34)
OEM Engine details 3,8 Ltr 24V Engine code:S38B38 • Displacement:3795 cc • Valves:24 • Comp. Ratio:10,5:1 • Head cc’s:44,00 • Gasket thickness:1,75 • Rod Length:142,50
Bore:94,60 • Stroke:90,00 • Block Ht:217,50
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE244M95 95,00 0,40 30,66 -19 0,66 10,0:1 22 9500XX 334 1,F,M W6637 R-BMW-009H -
KE244M955 95,50 0,90 30,66 -19 0,66 10,0:1 22 9550XX 338 1,F,M 330017R R-BMW-009H -
KE343M95 95,00 0,40 30,66 -15 0,66 10,5:1 22 9500XX 371 1,F,M W6637 R-BMW-009H -
KE343M955 95,50 0,90 30,66 -15 0,66 10,5:1 22 9550XX 376 1,F,M 330017R R-BMW-009H -
KE344M95 95,00 0,40 30,66 -6 0,66 12,0:1 22 9500XX 388 1,F,M W6637 R-BMW-009H -
KE344M955 95,50 0,90 30,66 -6 0,66 12,0:1 22 9550XX 391 1,F,M H1613SP2080S R-BMW-009H -
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
352747C 95,00 0,40 30,00 -13 0 10,5:1 22 9500XX 411 I,M,R W6637 - -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL A531 - - 201-4S38* 201-6S38 201-5S38
KING - - -
*does not fit M88 Head

56 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 57
