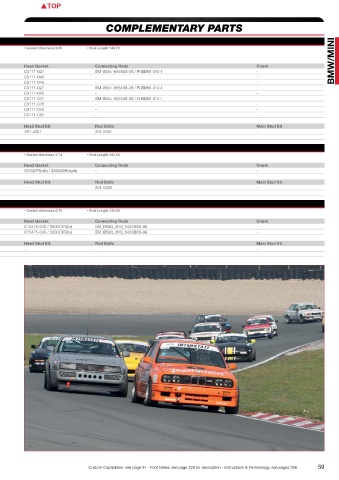

BMW/Mini PISTONS COMPLEMENTARY PARTS

S65B40 as in M3 (E90)
OEM Engine details 4,0 Ltr 32V Engine code:S65B40 • Displacement:3999 cc • Valves:32 • Comp. Ratio:12,0:1 • Head cc’s: 52,60 • Gasket thickness:0,60 • Rod Length:140,72
Bore:92,00 • Stroke:75,20 • Block Ht: 206,00
FSR C/R calculated with 1,22 mm head gasket BMW/MINI
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
357297C 92,00 Std. 27,51 4,65 0,17- 10,0:1 21 9200XX 374 F,I,M,N,T C5111-027 BM-S65>-65540S-08 / R-BMW-014-I -
TBA 92,00 Std. 27,40 - 0,28- 10,5:1 - JG1008-3622 - F,T,V C5111-045 - -
TBA 92,50 0,50 27,40 - 0,28- 10,5:1 - JG1008-3642 - F,T,V C5111-045 - -
364990C 92,00 Std. 27,48 12,35 0,20- 12,0:1 21 9200XX 353 F,I,M,N C5111-027 BM-S65>-65540S-08 / R-BMW-014-I
TBA 92,00 Std. 27,40 11 0,28- 12,0:1 - JG1008-3622 - F,T,V C5111-045 - -
369587C/369588C 92,50 0,50 27,48 11,55 0,20- 12,0:1 21 9250XX-COATED 359 I,M,N,Z C5111-027 BM-S65>-65540S-08 / R-BMW-014-I
TBA 92,50 0,50 27,40 11 0,28- 12,0:1 - JG1008-3642 - F,T,V C5111-045 - -
TBA 92,00 Std. 27,40 - 0,28- 13,5:1 - JG1008-3622 - F,T,V C5111-045 - -
TBA 92,50 0,50 27,40 - 0,28- 13,5:1 - JG1008-3642 - F,T,V C5111-045 - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 8B1580H(HX/0,025/0,25) - - 201-4307 201-6001 -
KING - MB5803XP -
M62B44 as in 7 series (E39)
OEM Engine details 4,4 Ltr 32V Engine code:M62B44 • Displacement:4398 cc • Valves:32 • Comp. Ratio:10,0:1 • Head cc’s: N/A • Gasket thickness:1,74 • Rod Length:143,00
Bore:92,00 • Stroke:82,70 • Block Ht: -
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
357355C 92,00 Std. 31,00 -5.01 0 8,5:1 22 JG1001-3622 350 F,I,M 330027R(left) / 330026R(right) - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - 201-6302 -
KING - - -
S63B44B as in M5 (F10)
OEM Engine details 4,4 Ltr 32V Engine code:S63B44B • Displacement:4395 cc • Valves:32 • Comp. Ratio:10,0:1 • Head cc’s: 44,00 • Gasket thickness:0,75 • Rod Length:138,50
Bore:89,00 • Stroke:88,30 • Block Ht: 215,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
360964C 89,00 Std. 32,00 -14,2 0,35- 9,3:1 22 JG1001-3543 347 I,M,S, C15475-040 / 330073R(2x) BM_BS63_2HS_5453B6S-08 -
358161C 90,00 1,00 32,00 -13,5 0,35- 9,3:1 22 JG1001-3543 371 I,F,M C15475-040 / 330073R(2x) BM_BS63_2HS_5453B6S-08 -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 8B1580H(HX/0,025/0,25)(1,5x) - - - - -
KING - - -

58 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 59
