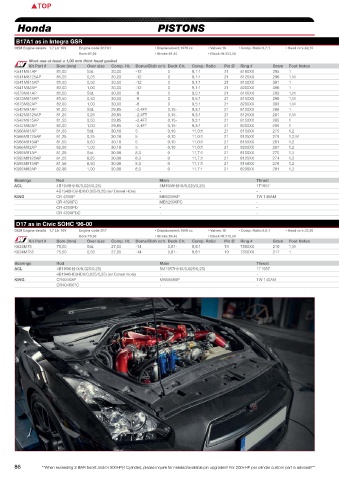

Honda PISTONS COMPLEMENTARY PARTS

B17A1 as in Integra GSR
OEM Engine details 1,7 Ltr 16V Engine code:B17A1 • Displacement:1678 cc • Valves:16 • Comp. Ratio:9,7:1 • Head cc’s:42,70 • Gasket thickness:0,75 • Rod Length:132,30
Bore:81,00 • Stroke:81,40 • Block Ht:203,00 HONDA
Must use at least a 1,00 mm thick head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K541M81AP 81,00 Std. 30,00 -12 0 8,1:1 21 8100XX 295 1 W6602(Vtec)/W6086 - -
K541M8125AP 81,25 0,25 30,00 -12 0 8,1:1 21 8125XX 296 1,M W6602(Vtec)/W6086 - -
K541M815AP 81,50 0,50 30,00 -12 0 8,1:1 21 8150XX 301 1 W6602(Vtec)/W6086 - -
K541M82AP 82,00 1,00 30,00 -12 0 8,1:1 21 8200XX 306 1 W6167(Vtec)/W6086 - -
K673M81AP 81,00 Std. 30,00 -8 0 8,5:1 21 8100XX 293 1,M W6602(Vtec)/W6086 - -
K673M815AP 81,50 0,50 30,00 -8 0 8,5:1 21 8150XX 298 1,M W6602(Vtec)/W6086 - -
K673M82AP 82,00 1,00 30,00 -8 0 8,5:1 21 8200XX 303 1,M W6167(Vtec)/W6086 - -
K542M81AP 81,00 Std. 29,85 -2,4FT 0,15- 9,3:1 21 8100XX 286 1 W6602(Vtec)/W6086 - -
K542M8125AP 81,25 0,25 29,85 -2,4FT 0,15- 9,3:1 21 8125XX 281 1,M W6602(Vtec)/W6086 - -
K542M815AP 81,50 0,50 29,85 -2,4FT 0,15- 9,3:1 21 8150XX 285 1 W6602(Vtec)/W6086 - -
K542M82AP 82,00 1,00 29,85 -2,4FT 0,15- 9,3:1 21 8200XX 296 1 W6167(Vtec)/W6086 - -
K566M81AP 81,00 Std. 30,10 5 0,10 11,0:1 21 8100XX 275 1,2 W6602(Vtec)/W6086 - -
K566M8125AP 81,25 0,25 30,10 5 0,10 11,0:1 21 8125XX 279 1,2,M W6602(Vtec)/W6086 - -
K566M815AP 81,50 0,50 30,10 5 0,10 11,0:1 21 8150XX 281 1,2 W6602(Vtec)/W6086 - -
K566M82AP 82,00 1,00 30,10 5 0,10 11,0:1 21 8200XX 287 1,2 W6167(Vtec)/W6086 - -
K593M81AP 81,00 Std. 30,00 8,3 0 11,7:1 21 8100XX 270 1,2 W6602(Vtec)/W6086 - -
K593M8125AP 81,25 0,25 30,00 8,3 0 11,7:1 21 8125XX 274 1,2 W6602(Vtec)/W6086 - -
K593M815AP 81,50 0,50 30,00 8,3 0 11,7:1 21 8150XX 278 1,2 W6602(Vtec)/W6086 - -
K593M82AP 82,00 1,00 30,00 8,3 0 11,7:1 21 8200XX 281 1,2 W6167(Vtec)/W6086 - -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1946H(HX/0,025/0,25) 5M1959H(HX/0,025/0,25) 1T1957 208-4303 208-6401 208-5403
4B1946HD(HDX/0,025/0,25) (w/ Dowel Hole) - -
KING CR 439XP MB5259XP TW 140AM
CR 439XPC MB5259XPC -
CR 439XPD - -
CR 439XPDC - -
D17 as in Civic SOHC ‘96-00
OEM Engine details 1,7 Ltr 16V Engine code:D17 • Displacement:1668 cc • Valves:16 • Comp. Ratio:9,5:1 • Head cc’s:33,50 • Gasket thickness:0,71 • Rod Length:137,00
Bore:75,00 • Stroke:94,40 • Block Ht:212,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K624M75 75,00 Std. 27,00 -14 0,81- 8,8:1 19 7500XX 210 1,M C4474-027 015BT12137 -
K624M755 75,50 0,50 27,00 -14 0,81- 8,8:1 19 7550XX 217 1 C4474-027 015BT12137 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1956H(HX/0,025/0,25) 5M1957H(HX/0,025/0,25) 1T1957 - - -
4B1946HD(HDX/0,025/0,25) (w/ Dowel Hole) - - - - -
KING CR4046XP MB5568XP TW 140AM
CR4046XPC - -

86 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 87
