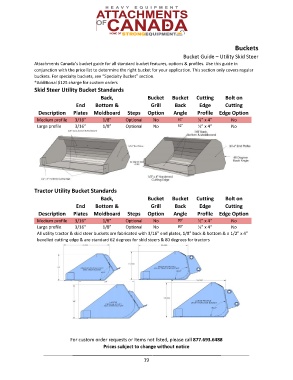

Page 20 - Skid Steer (1)

Buckets
Bucket Guide – Utility Skid Steer
Attachments Canada’s bucket guide for all standard bucket features, options & profiles. Use this guide in
conjunction with the price list to determine the right bucket for your application. This section only covers regular
buckets. For specialty buckets, see “Specialty Bucket” section.
*Additional $125 charge for custom orders
Skid Steer Utility Bucket Standards
Back, Bucket Bucket Cutting Bolt on
End Bottom & Grill Back Edge Cutting
Description Plates Moldboard Steps Option Angle Profile Edge Option
Medium profile 3/16” 1/8” Optional No 62° ½” x 4” No
Large profile 3/16” 1/8” Optional No 62° ½” x 4” No

Tractor Utility Bucket Standards
Back, Bucket Bucket Cutting Bolt on
End Bottom & Grill Back Edge Cutting
Description Plates Moldboard Steps Option Angle Profile Edge Option
Medium profile 3/16” 1/8” Optional No 80° ½” x 4” No
Large profile 3/16” 1/8” Optional No 80° ½” x 4” No
All utility tractor & skid steer buckets are fabricated with 3/16” end plates, 1/8” back & bottom & a 1/2” x 4”
bevelled cutting edge & are standard 62 degrees for skid steers & 80 degrees for tractors

For custom order requests or items not listed, please call 877.693.6488
Prices subject to change without notice
