Buckets

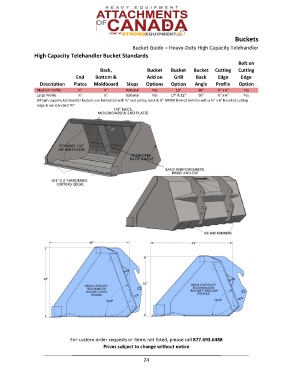

Bucket Guide – Heavy-Duty High Capacity Telehandler
High Capacity Telehandler Bucket Standards
Bolt on
Back, Bucket Bucket Bucket Cutting Cutting
End Bottom & Add on Grill Back Edge Edge
Description Plates Moldboard Steps Options Option Angle Profile Option
Medium Profile ¼” ¼” Optional Yes 10” 80° ¾” x 6” Yes
Large Profile ¼” ¼” Optional Yes 10” & 12” 80° ¾” x 6” Yes
All high capacity telehandler buckets are fabricated with ¼” end plates, back & ¼” AR400 formed bottom with a ¾” x 6” bevelled cutting
edge & are standard 70°

For custom order requests or items not listed, please call 877.693.6488
Prices subject to change without notice
