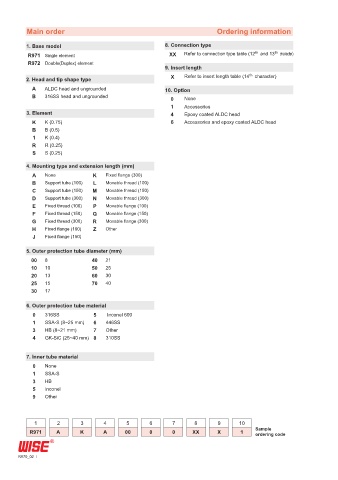

Main order Ordering information

1. Base model 8. Connection type
th
th
R971 Single element XX Refer to connection type table (12 and 13 character)
R972 Double(Duplex) element
9. Insert length
th
2. Head and tip shape type X Refer to insert length table (14 character)
A ALDC head and ungrounded 10. Option
B 316SS head and ungrounded 0 None
1 Accessories
3. Element 4 Epoxy coated ALDC head
K K (0.75) 6 Accessories and epoxy coated ALDC head
B B (0.5)
1 K (0.4)
R R (0.25)
S S (0.25)

4. Mounting type and extension length (mm)
A None K Fixed flange (300)
B Support tube (100) L Movable thread (100)
C Support tube (150) M Movable thread (150)
D Support tube (300) N Movable thread (300)
E Fixed thread (100) P Movable flange (100)
F Fixed thread (150) Q Movable flange (150)
G Fixed thread (300) R Movable flange (300)
H Fixed flange (100) Z Other
J Fixed flange (150)

5. Outer protection tube diameter (mm)
00 8 40 21
10 10 50 25
20 13 60 30
25 15 70 40
30 17
6. Outer protection tube material
0 316SS 5 Inconel 600
1 SSA-S (8~25 mm) 6 446SS
3 HB (8~21 mm) 7 Other
4 GK-SiC (25~40 mm) 8 310SS

7. Inner tube material
0 None
1 SSA-S
3 HB
5 Inconel
9 Other

1 2 3 4 5 6 7 8 9 10
Sample
R971 A K A 00 0 0 XX X 1 ordering code

R970_02
