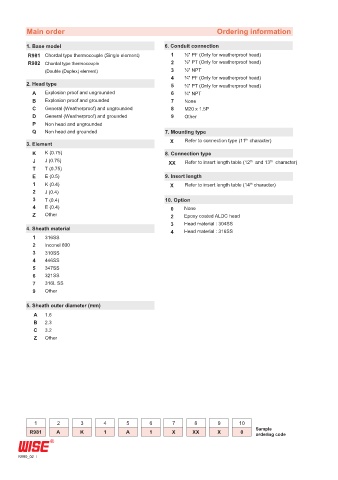

Main order Ordering information

1. Base model 6. Conduit connection
R981 Chordal type thermocouple (Single element) 1 ½" PF (Only for weatherproof head)
R982 Chordal type thermocouple 2 ½" PT (Only for weatherproof head)
(Double (Duplex) element) 3 ½" NPT
4 ¾" PF (Only for weatherproof head)
2. Head type 5 ¾" PT (Only for weatherproof head)
A Explosion proof and ungrounded 6 ¾" NPT
B Explosion proof and grounded 7 None
C General (Weatherproof) and ungrounded 8 M20 x 1.5P
D General (Weatherproof) and grounded 9 Other
P Non head and ungrounded
Q Non head and grounded 7. Mounting type
th
3. Element X Refer to connection type (11 character)
K K (0.75) 8. Connection type
J J (0.75) XX Refer to insert length table (12 and 13 character)
th
th
T T (0.75)
E E (0.5) 9. Insert length
1 K (0.4) X Refer to insert length table (14 character)
th
2 J (0.4)
3 T (0.4) 10. Option
4 E (0.4) 0 None
Z Other 2 Epoxy coated ALDC head
3 Head material : 304SS
4. Sheath material
4 Head material : 316SS
1 316SS
2 Inconel 600
3 310SS
4 446SS
5 347SS
6 321SS
7 316L SS
9 Other
5. Sheath outer diameter (mm)
A 1.6
B 2.3
C 3.2
Z Other

1 2 3 4 5 6 7 8 9 10
Sample
R981 A K 1 A 1 X XX X 0 ordering code

R980_02
